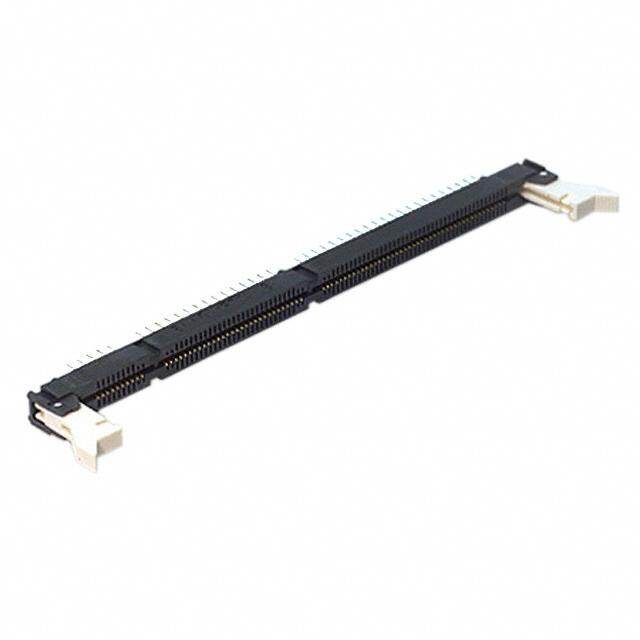

71251-0012

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Memory Connectors - Inline Module Sockets
Description CONN SKT DIMM 168POS PCB
PDF
/
Inventory: 1622
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Plating Thickness FLASH inch
Length 147.67mm

Technical

Insertion Force-Max .695 N
PCB Contact Row Spacing 0.075 mm
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
Body/Shell Style SOCKET
Insulation Resistance 1GOhm
Contact Style BELLOWED TYPE
Rated Current (Signal) 1A
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number of Contacts 168
Lead Pitch 1.27mm
Number Of PCB Rows 4
Reliability COMMERCIAL
Voltage - Rated AC 100V
Reference Standard UL
Number of Conductors ONE
Current Rating 1A
Depth 7.37mm
Orientation Straight
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature LATCHED
Gender Female
Number of Rows 2
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type CARD EDGE CONNECTOR
ECCN Code EAR99
Termination Solder
Part Status Discontinued
JESD-609 Code e3
Published 2009

Physical

Insulation Material Polymer
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
