54697-7000
RoHS
/
Package /
Category Connectors, Interconnects / Memory Connectors - Inline Module Sockets
Description

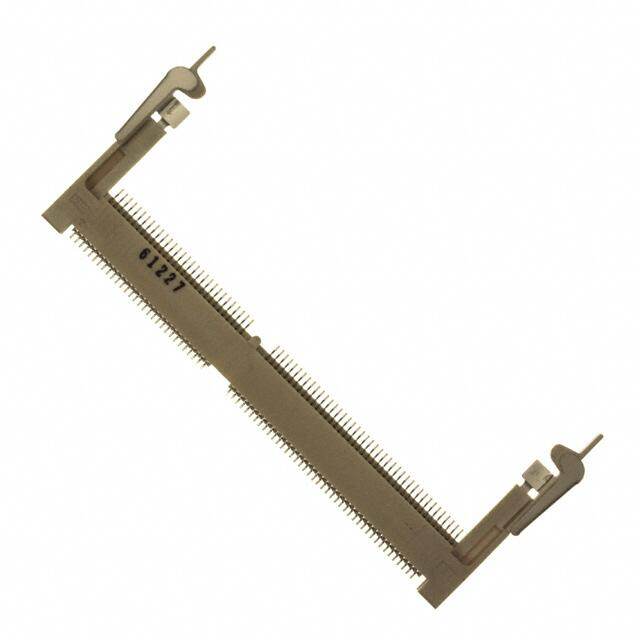

CONN SKT SODIMM 144POS R/A SMD
PDF
/
Inventory: 6384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material NOT SPECIFIED
Mounting Type BOARD
Mounting Option 1 LATCH & EJECT
Mounting Style RIGHT ANGLE
Board Mounting Option PEG
Mounting Option 2 LOCKING
Technical
Published 2008
JESD-609 Code e3
Part Status Discontinued
ECCN Code EAR99
Connector Type CARD EDGE CONNECTOR
Number of Rows 2
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD (10)
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 144
Terminal Pitch 0.8mm
Reach Compliance Code unknown
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.854 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Body Breadth 0.157 inch
Contact Gender FEMALE
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 0.3A
Contact Style BELLOWED TYPE
Contact Resistance 50mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.031 inch
Body/Shell Style SOCKET
Termination Type SURFACE MOUNT
Polarization Key POLARIZED KEY
Dielectric Withstanding Voltage 200VAC V
PCB Contact Row Spacing 0.323 mm
Durability 30 Cycles
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Insulator Color WHITE
Dimensions
Plating Thickness FLASH inch
Compliance
RoHS Status RoHS Compliant
Alternative Model
