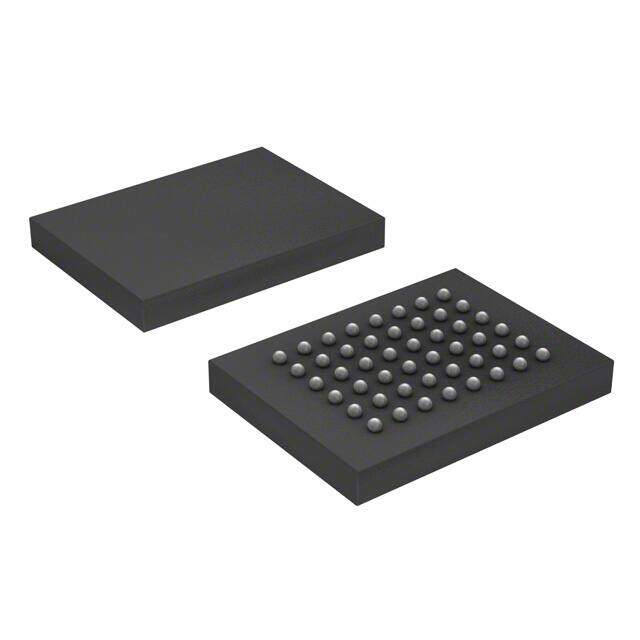

AS6C8016-55BIN
RoHS
RoHS compliant
RoHS compliantPackage 48-LFBGA
Category Integrated Circuits (ICs) / Memory
Description
Surface Mount Tray SRAM - Asynchronous SRAM ic memory 55ns 8mm 0.00005A 8Mb
PDF
/
Buying Options
Total Price: USD $7.07
Unit Price: USD $7.0664
≥1 USD $7.0664
≥10 USD $6.5032
≥100 USD $6.368032
≥500 USD $6.3459
≥1000 USD $5.694154
≥3000 USD $5.522079
Inventory: 759
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 48-LFBGA
Surface Mount YES
Number of Pins 48
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2008
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
Technology SRAM - Asynchronous
Voltage - Supply 2.7V~5.5V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.75mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 48
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 3/5V
Supply Voltage-Min (Vsup) 2.7V
Memory Size 8Mb 512K x 16
Number of Ports 1
Memory Type Volatile
Supply Current-Max 0.06mA
Memory Format SRAM
Memory Interface Parallel
Output Characteristics 3-STATE
Memory Width 16
Write Cycle Time - Word, Page 55ns
Address Bus Width 19b
Density 8 Mb
Standby Current-Max 0.00005A
Access Time (Max) 55 ns
I/O Type COMMON
Standby Voltage-Min 2V
Dimensions
Length 8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
