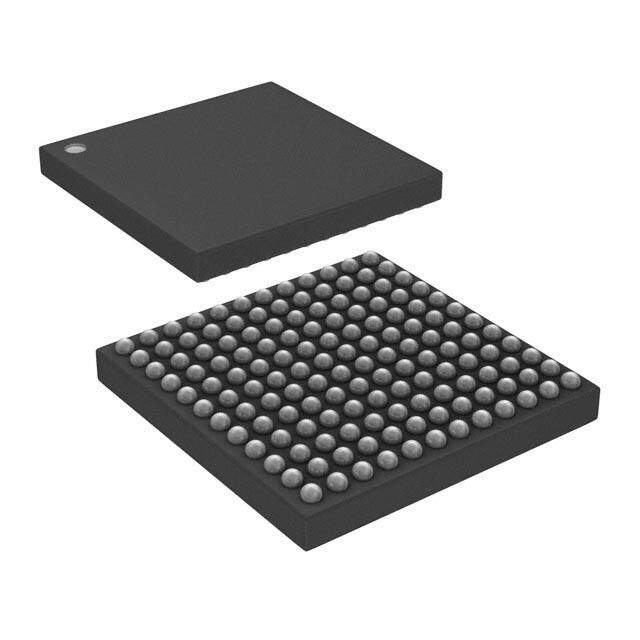

AS4C4M32D1A-5BIN
RoHS
/
Package 144-LFBGA
Category Integrated Circuits (ICs) / Memory
Description
S-PBGA-B144 Surface Mount Tray 4MX32 ic memory 200MHz 700ps 12mm 134217728bit
PDF
/
Buying Options
Total Price: USD $4.5
Unit Price: USD $4.4968
≥1 USD $4.4968
≥10 USD $4.10432
≥100 USD $4.025824
≥500 USD $3.99674
≥1000 USD $3.586396
≥3000 USD $3.572914
Inventory: 223
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 1.4mm
Technical
Memory Density 134217728 bit
Write Cycle Time - Word, Page 12ns
Memory Width 32
Organization 4MX32
Memory Interface Parallel
Memory Format DRAM
Access Time 700ps
Clock Frequency 200MHz
Operating Mode SYNCHRONOUS
Memory Type Volatile
Number of Ports 1
Memory Size 128Mb 4M x 32
Supply Voltage-Min (Vsup) 2.3V
Supply Voltage-Max (Vsup) 2.7V
JESD-30 Code S-PBGA-B144
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Supply Voltage 2.5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position BOTTOM
Voltage - Supply 2.3V~2.7V
Technology SDRAM - DDR
Additional Feature AUTO/SELF REFRESH
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 144-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
