AS4C16M16D2-25BIN
RoHS
RoHS compliant

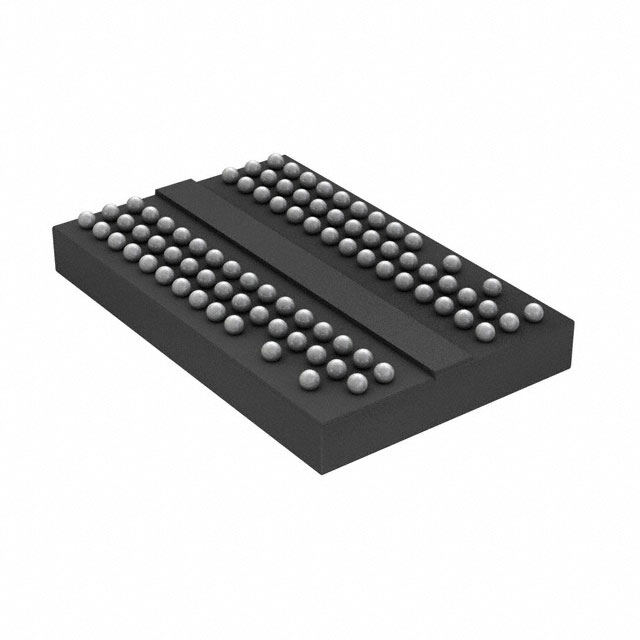

RoHS compliantPackage 84-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount Tray 16MX16 ic memory 400MHz 400ps 8mm 268435456bit
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.47808
≥100 USD $2.424576
≥500 USD $2.41164
≥1000 USD $2.309982
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 84-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~95°C TC
Packaging Tray
Published 2015
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 84
ECCN Code EAR99
Additional Feature AUTO/SELF REFRESH
Technology SDRAM - DDR2
Voltage - Supply 1.7V~1.9V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B84
Supply Voltage-Max (Vsup) 1.9V
Supply Voltage-Min (Vsup) 1.7V
Memory Size 256Mb 16M x 16
Number of Ports 1
Memory Type Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 400MHz
Access Time 400ps
Memory Format DRAM
Memory Interface Parallel
Organization 16MX16
Memory Width 16
Write Cycle Time - Word, Page 15ns
Memory Density 268435456 bit
Dimensions
Height Seated (Max) 1.2mm
Length 12.5mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
