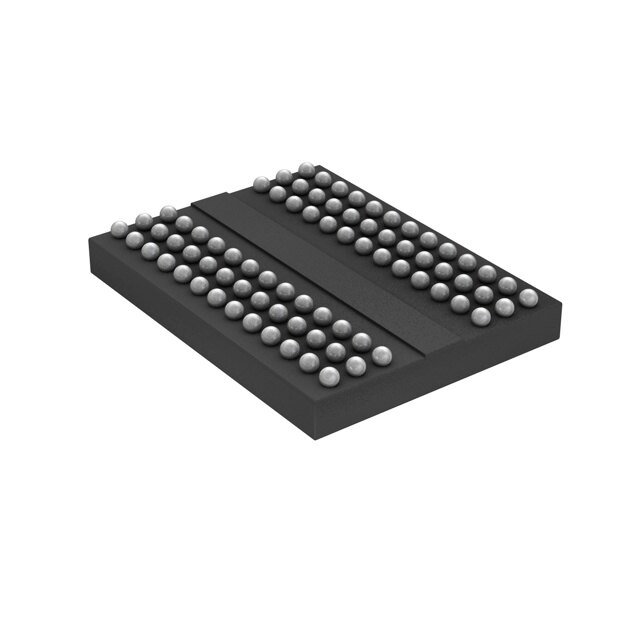

AS4C128M8D3B-12BIN
RoHS
RoHS compliant
RoHS compliantPackage 78-VFBGA
Category Integrated Circuits (ICs) / Memory
Description
R-PBGA-B78 Surface Mount Tray 128MX8 ic memory 800MHz 20ns 8mm 1073741824bit
PDF
/
Buying Options
Total Price: USD $6.63
Unit Price: USD $6.6264
≥1 USD $6.6264
≥10 USD $6.09664
≥100 USD $5.96992
≥500 USD $5.94946
≥1000 USD $5.3383
≥3000 USD $5.176943
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Length 10.5mm
Height Seated (Max) 1mm
Technical
Memory Density 1073741824 bit
Write Cycle Time - Word, Page 15ns
Memory Width 8
Organization 128MX8
Memory Interface Parallel
Memory Format DRAM
Access Time 20ns
Clock Frequency 800MHz
Operating Mode SYNCHRONOUS
Memory Type Volatile
Number of Ports 1
Memory Size 1Gb 128M x 8
Supply Voltage-Min (Vsup) 1.425V
Supply Voltage-Max (Vsup) 1.575V
JESD-30 Code R-PBGA-B78
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Supply Voltage 1.5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position BOTTOM
Voltage - Supply 1.425V~1.575V
Technology SDRAM - DDR3
Additional Feature AUTO/SELF REFRESH
Number of Terminations 78
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Operating Temperature -40°C~95°C TC
Physical
Surface Mount YES
Package / Case 78-VFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
