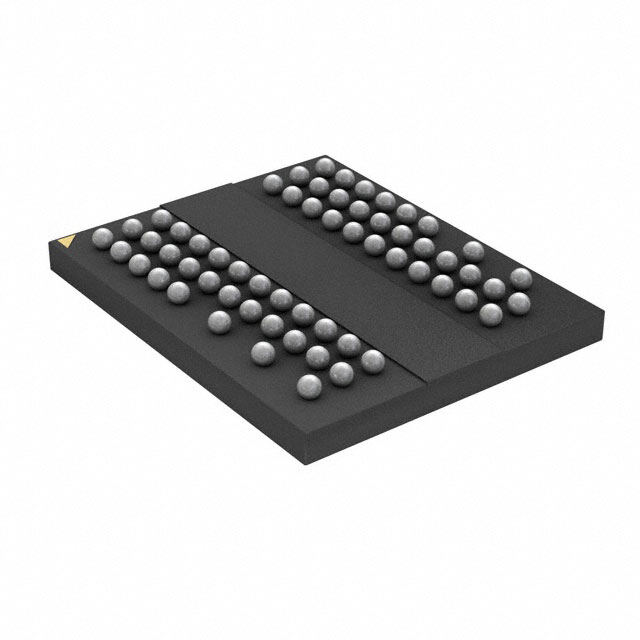

AS4C128M8D2A-25BIN
RoHS
RoHS compliant
RoHS compliantPackage 60-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
Active BOTTOM Volatile SYNCHRONOUS ic memory -40C~95C TC 1.7V 1073741824bit 8mm
PDF
/
Buying Options
Total Price: USD $6.15
Unit Price: USD $6.1512
≥1 USD $6.1512
≥10 USD $5.61264
≥100 USD $5.504928
≥500 USD $5.46502
≥1000 USD $4.9038
≥3000 USD $4.885434
Inventory: 358
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 60-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~95°C TC
Packaging Tray
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 60
Additional Feature AUTO/SELF REFRESH
Technology SDRAM - DDR2
Voltage - Supply 1.7V~1.9V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.8mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B60
Supply Voltage-Max (Vsup) 1.95V
Supply Voltage-Min (Vsup) 1.7V
Memory Size 1Gb 128M x 8
Number of Ports 1
Memory Type Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 400MHz
Access Time 400ps
Memory Format DRAM
Memory Interface Parallel
Organization 128MX8
Memory Width 8
Write Cycle Time - Word, Page 15ns
Memory Density 1073741824 bit
Dimensions
Height Seated (Max) 1.2mm
Length 10mm
Width 8mm
Compliance
RoHS Status RoHS Compliant
