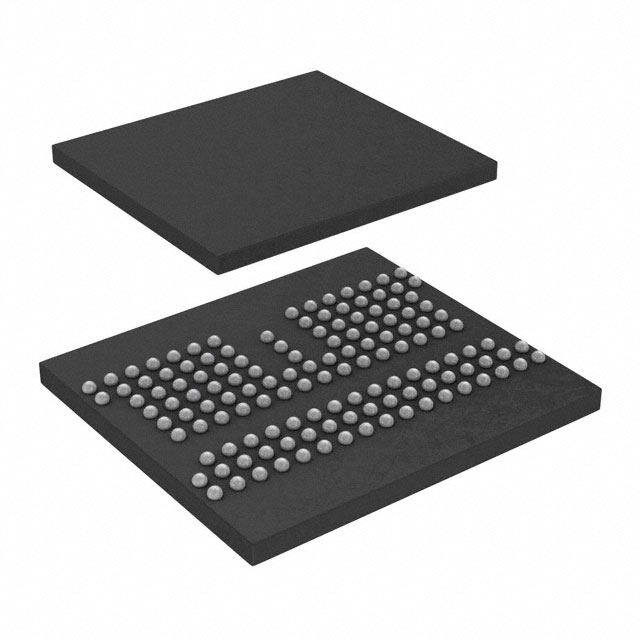

AS4C128M32MD2A-18BIN
RoHS
RoHS compliant
RoHS compliantPackage 134-VFBGA
Category Integrated Circuits (ICs) / Memory
Description
R-PBGA-B134 Surface Mount Tray 128MX32 ic memory 533MHz 15ns 10mm 4294967296bit
PDF
/
Buying Options
Total Price: USD $9.2
Unit Price: USD $9.2048
≥1 USD $9.2048
≥10 USD $8.85456
Inventory: 9780
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 134-VFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TC
Packaging Tray
Published 2017
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 134
Additional Feature AUTO/SELF REFRESH; IT ALSO REQUIRES 1.8V NOMINAL SUPPLY
Technology SDRAM - Mobile LPDDR2
Voltage - Supply 1.14V~1.95V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.2V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B134
Supply Voltage-Max (Vsup) 1.3V
Supply Voltage-Min (Vsup) 1.14V
Memory Size 4Gb 128M x 32
Number of Ports 1
Memory Type Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 533MHz
Memory Format DRAM
Memory Interface Parallel
Organization 128MX32
Memory Width 32
Write Cycle Time - Word, Page 15ns
Memory Density 4294967296 bit
Access Mode SINGLE BANK PAGE BURST
Dimensions
Height Seated (Max) 1mm
Length 11.5mm
Width 10mm
Compliance
RoHS Status ROHS3 Compliant
