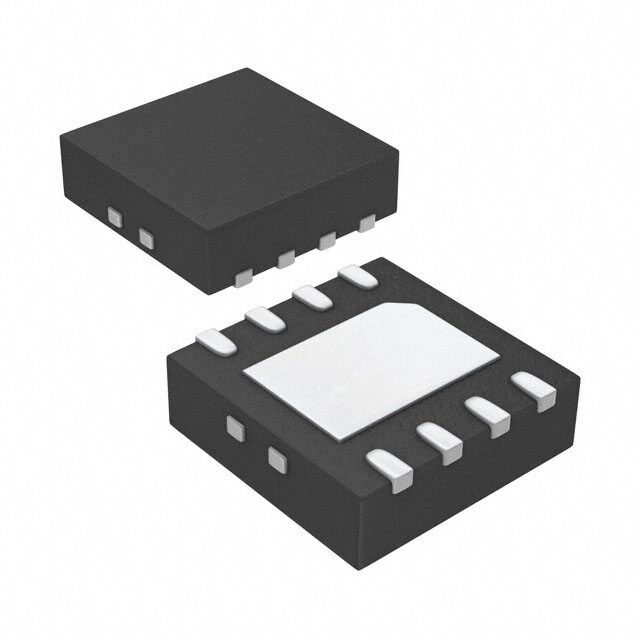

AT45DQ321-MWHF-T
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
R-PDSO-N8 Surface Mount Tape & Reel (TR) 32MX1 ic memory 104MHz 8mus 4ms 6mm 33554432bit
PDF
/
Buying Options
Total Price: USD $4.14
Unit Price: USD $4.136
≥1 USD $4.136
≥10 USD $3.75232
≥100 USD $3.671008
≥500 USD $3.651296
≥1000 USD $3.273864
≥3000 USD $3.261914
Inventory: 2074
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 8mm
Height Seated (Max) 1mm
Technical
Programming Voltage 3V
Parallel/Serial SERIAL
Memory Density 33554432 bit
Write Cycle Time - Word, Page 8μs, 4ms
Memory Width 1
Organization 32MX1
Memory Interface SPI
Memory Format FLASH
Clock Frequency 104MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 32Mb 528Bytes x 8192 pages
Supply Voltage-Min (Vsup) 2.3V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code R-PDSO-N8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 2.3V~3.6V
Technology CMOS
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TC
Physical
Surface Mount YES
Package / Case 8-VDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
