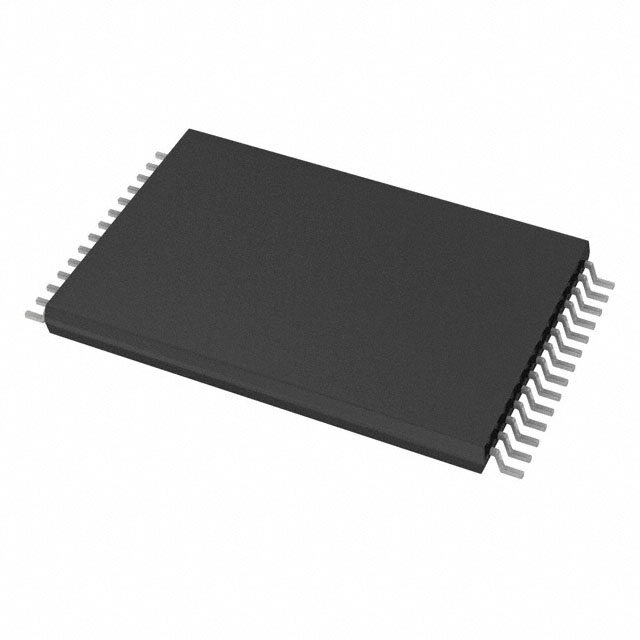

AT45DB321D-TU
RoHS
/
Package 28-TSSOP (0.465, 11.80mm Width)
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.1.A Surface Mount Tray 32MX1 ic memory 66MHz 6ns 11.8mm 15mA
PDF
/
Buying Options
Total Price: USD $7.25
Unit Price: USD $7.24945
≥1 USD $7.24945
≥10 USD $5.94795
≥100 USD $5.7627
≥500 USD $5.5765
≥1000 USD $5.3903
Inventory: 1481
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 11.8mm
Length 8mm
Height 1mm
Technical
Page Size 512B
Programming Voltage 2.7V
Word Size 8b
Sync/Async Synchronous
Density 32 Mb
Address Bus Width 1b
Write Cycle Time - Word, Page 6ms
Organization 32MX1
Memory Interface SPI
Memory Format FLASH
Access Time 6 ns
Clock Frequency 66MHz
Memory Type Non-Volatile
Nominal Supply Current 15mA
Memory Size 32Mb 528Bytes x 8192 pages
Interface SPI, Serial
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Pin Count 28
Terminal Pitch 0.55mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
Technology CMOS
HTS Code 8542.32.00.51
Terminal Finish Matte Tin (Sn)
ECCN Code 3A991.B.1.A
Termination SMD/SMT
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 1997
Packaging Tray
Operating Temperature -40°C~85°C TC
Physical
Number of Pins 28
Package / Case 28-TSSOP (0.465, 11.80mm Width)
Mounting Type Surface Mount
Mount Surface Mount
