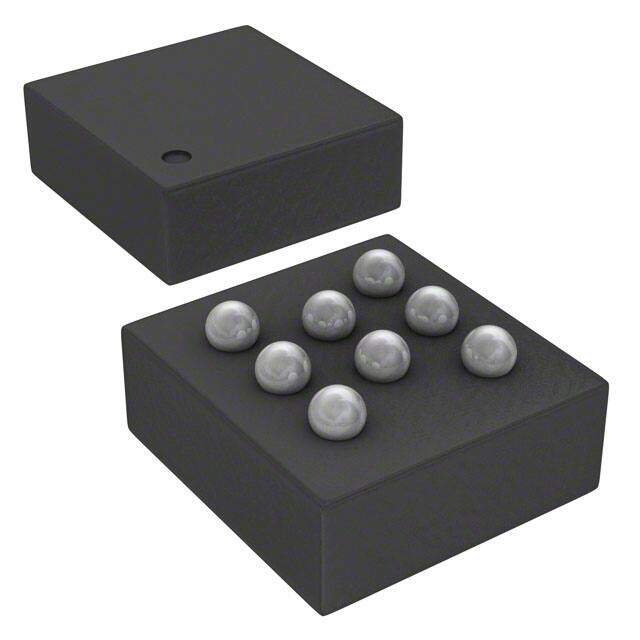

AT25DF041B-UUN-T
RoHS
RoHS compliant
RoHS compliantPackage 8-XFBGA, WLCSP
Category Integrated Circuits (ICs) / Memory
Description
R-PBGA-B8 Surface Mount Tape & Reel (TR) 4MX1 ic memory 104MHz 8mus 2.5ms 1.575mm 4194304bit
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.61864
≥100 USD $0.611072
≥500 USD $0.607376
≥1000 USD $0.543136
≥3000 USD $0.538982
Inventory: 107423
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-XFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TC
Packaging Tape & Reel (TR)
Published 2013
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Technology CMOS
Voltage - Supply 1.65V~3.6V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B8
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.65V
Interface SPI, Serial
Memory Size 4Mb 512K x 8
Memory Type Non-Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 104MHz
Memory Format FLASH
Memory Interface SPI
Organization 4MX1
Memory Width 1
Write Cycle Time - Word, Page 8μs, 2.5ms
Memory Density 4194304 bit
Programming Voltage 1.8V
Dimensions
Height Seated (Max) 0.35mm
Length 1.631mm
Width 1.575mm
Compliance
RoHS Status ROHS3 Compliant
