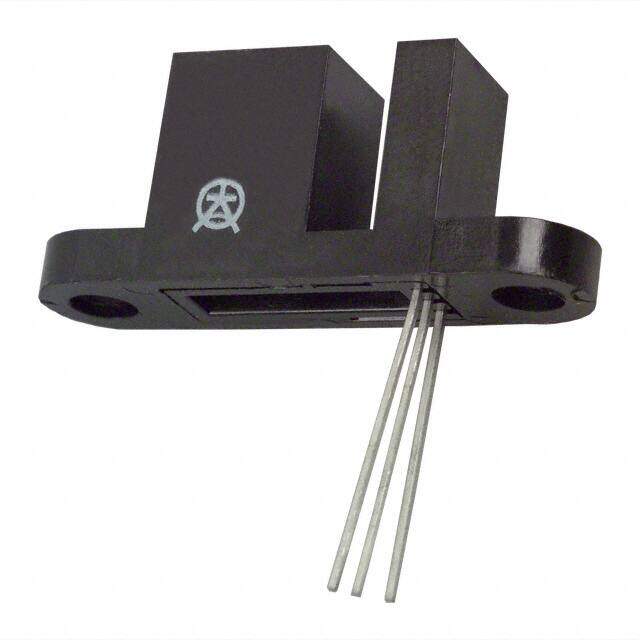

OHB900 image
Favorite
RoHS
RoHS RoHS compliant
Package Slotted Body
Category Sensors, Transducers / Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL PC PIN
PDF
/
Buying Options
Total Price: USD $59.07
Unit Price: USD $59.0653
≥1 USD $59.0653
≥10 USD $48.46425
≥100 USD $46.94995
≥500 USD $45.43565
≥1000 USD $43.9204
Inventory: 1158
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Screw
Package / Case Slotted Body
Number of Pins 3
Housing Material Plastic
Actuator Material Ferrous Vane

Technical

Operating Temperature -50°C~150°C TA
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Hall Effect Sensor
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Voltage - Supply 4.5V~24V
Depth 6.35mm
Current Rating 7mA
Frequency 200kHz
Termination Style PC Pin
Output Voltage 400mV
Output Type Digital
Max Output Current 25mA
Max Supply Voltage 25V
Min Supply Voltage 4.5V
Nominal Supply Current 7mA
Output Current 25mA
Rise Time 210ns
Input Current 7mA
Max Supply Voltage (DC) 25V
Min Supply Voltage (DC) 4.5V
Switching Frequency 200kHz
Switching Current 25mA

Dimensions

Length 25.91mm
Width 26mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
