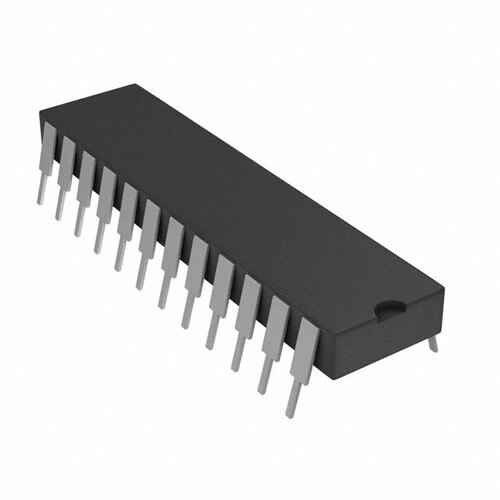

SN74LS673NE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Logic - Shift Registers
Description
TRUE Contains Lead DUAL Through Hole shift register 45pF 70C 5.25V 20MHz
PDF
/
Inventory: 2108
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 24
Weight 3.740011g
Technical
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 24
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Technology TTL
Terminal Position DUAL
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 2.54mm
Pin Count 24
Operating Supply Voltage 5V
Number of Elements 1
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Load Capacitance 45pF
Number of Bits 16
Propagation Delay 40 ns
Turn On Delay Time 45 ns
Family LS
Logic Function Shift Register
Direction Unidirectional
Output Characteristics 3-STATE
Output Polarity TRUE
Logic IC Type SERIAL IN PARALLEL OUT
Trigger Type NEGATIVE EDGE
Power Supply Current-Max (ICC) 80mA
Number of Output Lines 17
fmax-Min 20 MHz
Dimensions
Height Seated (Max) 5.08mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
