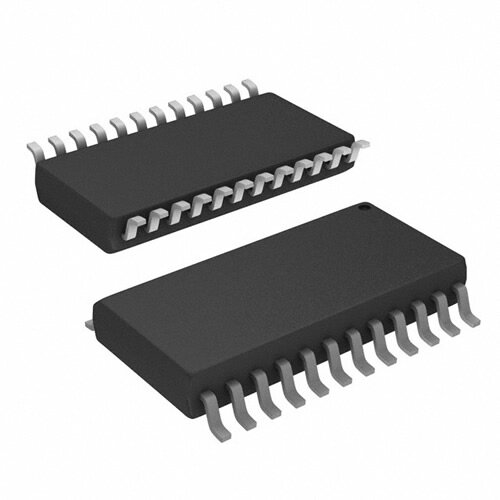

SN74LS673DWG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Logic - Shift Registers
Description
IC SHIFT REGISTER SGL 16B 24SOIC
PDF
/
Inventory: 9090
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.5mm
Height Seated (Max) 2.65mm
Technical
Max Frequency@Nom-Sup 20000000Hz
fmax-Min 28 MHz
Number of Output Lines 17
Trigger Type NEGATIVE EDGE
Logic IC Type SERIAL IN PARALLEL OUT
Output Polarity TRUE
Output Characteristics 3-STATE
Direction Unidirectional
Logic Function Shift Register
Family LS
Turn On Delay Time 45 ns
Propagation Delay 40 ns
Number of Bits 16
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Power Supplies 5V
Number of Elements 1
Operating Supply Voltage 5V
Pin Count 24
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology TTL
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Physical
Weight 620.004071mg
Number of Pins 24
Package / Case SOIC
Mount Surface Mount
Alternative Model
