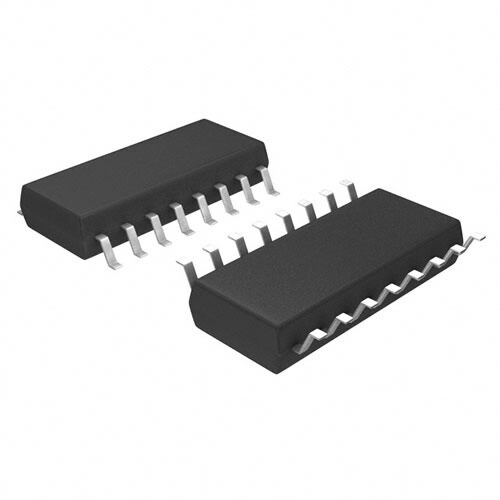

SN74LS166ANSRG4 image
Favorite
SN74LS166ANSRG4 image
Favorite

SN74LS166ANSRG4

Texas Instruments
RoHS
/
Package SOP
Category Integrated Circuits (ICs) / Logic - Shift Registers
Description LS PARALLEL IN SERIAL OUT RoHS Compliant Tape & Reel (TR) shift register 25ns 200.686274mg 25000000Hz 5.25V
PDF
/
Inventory: 4127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case SOP
Number of Pins 16
Weight 200.686274mg

Technical

Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 16
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature CLOCK INHIBIT
Subcategory Shift Registers
Technology TTL
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Pin Count 16
Operating Supply Voltage 5V
Number of Elements 1
Power Supplies 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Number of Bits 8
Propagation Delay 25 ns
Turn On Delay Time 30 ns
Family LS
Logic Function OR, Shift Register
Direction Unidirectional
Output Polarity TRUE
Logic IC Type PARALLEL IN SERIAL OUT
Trigger Type POSITIVE EDGE
Number of Input Lines 9
fmax-Min 25 MHz
Max Frequency@Nom-Sup 25000000Hz

Dimensions

Height Seated (Max) 2mm
Width 5.3mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
