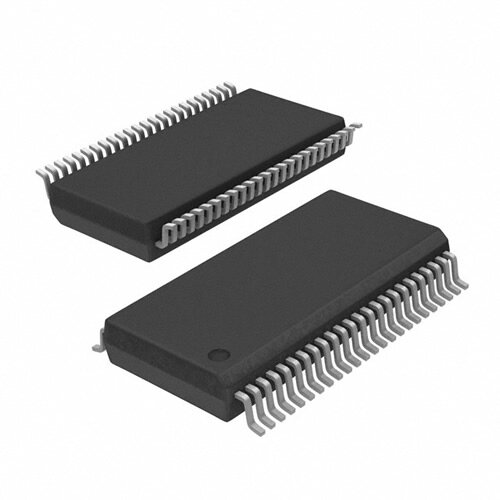

74ACT16373DLG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Logic - Latches
Description
SSOP ACT D-Type Latch GULL WING latch circuit 5.5V 24mA 14.2ns 600.301152mg
PDF
/
Inventory: 998
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Mount Surface Mount
Package / Case SSOP
Number of Pins 48
Weight 600.301152mg
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 48
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory FF/Latches
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Terminal Pitch 0.635mm
Pin Count 48
Operating Supply Voltage 5V
Number of Elements 2
Polarity Non-Inverting
Power Supplies 5V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Load Capacitance 50pF
Number of Ports 2
Current - Output 24mA
Number of Bits 8
Propagation Delay 14.2 ns
Quiescent Current 8μA
Turn On Delay Time 9.3 ns
Family ACT
Logic Function D-Type, Latch
Output Characteristics 3-STATE
Logic IC Type BUS DRIVER
High Level Output Current -24mA
Low Level Output Current 24mA
Number of Input Lines 16
Dimensions
Height 2.59mm
Length 16mm
Width 7.59mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
