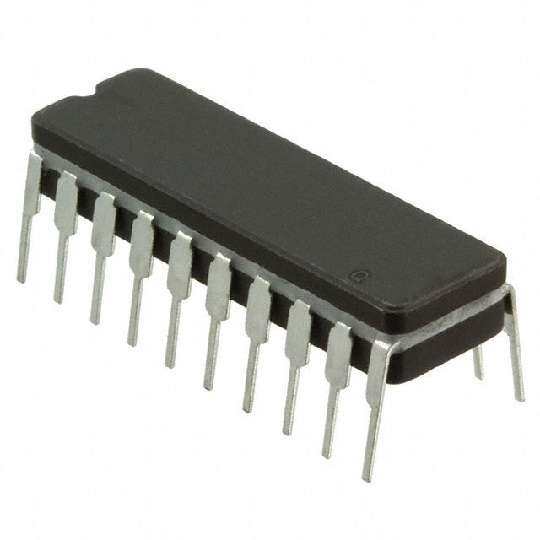

54FCT573CTDB
RoHS
/
Package CDIP
Category Integrated Circuits (ICs) / Logic - Latches
Description
Through Hole Non-RoHS Compliant Lead Tin Active (Logic Type) 50pF -55C 25.4mm 8ns
PDF
/
Buying Options
Total Price: USD $8.43
Unit Price: USD $8.431444
≥1 USD $8.431444
≥200 USD $3.262557
≥500 USD $3.148334
≥1000 USD $3.09188
Inventory: 1667
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Thickness 2.9mm
Width 7.62mm
Length 25.4mm
Technical
Independent Circuits 1
Low Level Output Current 32mA
High Level Output Current -12mA
Max I(ol) 0.032 A
Logic IC Type BUS DRIVER
Output Characteristics 3-STATE
Logic Function Latch
Family FCT
Turn On Delay Time 8 ns
Propagation Delay 8 ns
Number of Bits 8
Number of Ports 2
Load Capacitance 50pF
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade MILITARY
Power Supplies 5V
Polarity Non-Inverting
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Position DUAL
Technology CMOS
Additional Feature BROADSIDE VERSION OF 373
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2009
Physical
Number of Pins 20
Package / Case CDIP
Mount Through Hole
Contact Plating Lead, Tin
Supply Chain
Factory Lead Time 10 Weeks
