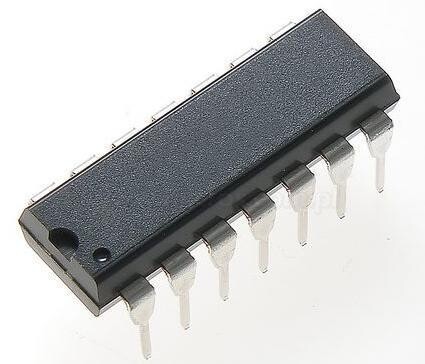

M74HC266B1R
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP (0.279, 7.10mm)
Category Integrated Circuits (ICs) / Logic - Gates and Inverters
Description
NOR XNOR M74HC266 e3 74HC logic gate circuit 15ns @ 6V 50pF - 5.2mA 6V -55C~125C
PDF
/
Inventory: 1127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Logic Level - High 1.5V ~ 4.2V
Logic Level - Low 0.5V ~ 1.8V
Schmitt Trigger NO
Max Propagation Delay @ V, Max CL 15ns @ 6V, 50pF
Number of Gates 4
Logic Type XNOR (Exclusive NOR)
Current - Output High, Low - 5.2mA
Number of Inputs 2
Logic Function NOR, XNOR
Family HC/UH
Quiescent Current 1μA
Propagation Delay 15 ns
Load Capacitance 50pF
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 6V
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 14
Base Part Number M74HC266
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 4.5V
Number of Functions 4
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 2V~6V
Technology CMOS
Subcategory Gates
Terminal Finish Matte Tin (Sn)
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Open Drain
JESD-609 Code e3
Series 74HC
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Number of Pins 14
Package / Case 14-DIP (0.279, 7.10mm)
Mounting Type Through Hole
Mount Through Hole
Alternative Model
