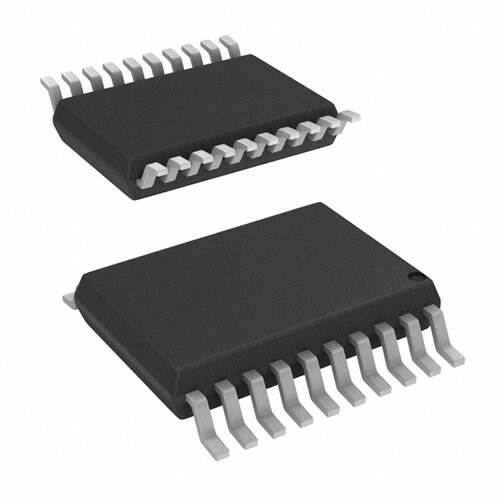

SN74LVTH273DBRE4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Logic - Flip Flops
Description
IC D-TYPE POS TRG SNGL 20SSOP
PDF
/
Inventory: 3812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SSOP
Number of Pins 20
Weight 156.687814mg
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory FF/Latches
Packing Method TAPE AND REEL
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.65mm
Frequency 150MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 20
Qualification Status Not Qualified
Output Type TTL
Operating Supply Voltage 3.3V
Number of Elements 1
Polarity Non-Inverting
Temperature Grade INDUSTRIAL
Max Supply Voltage 3.6V
Min Supply Voltage 2.7V
Load Capacitance 50pF
Current - Output 64mA
Propagation Delay 3.2 ns
Turn On Delay Time 3.2 ns
Family LVT
Logic Function D-Type, Flip-Flop
Logic IC Type D FLIP-FLOP
Max I(ol) 0.064 A
Number of Bits per Element 8
Prop. Delay@Nom-Sup 4.9 ns
High Level Output Current -32mA
Low Level Output Current 64mA
Clock Edge Trigger Type Positive Edge
Dimensions
Height Seated (Max) 2mm
Length 7.2mm
Width 5.3mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
