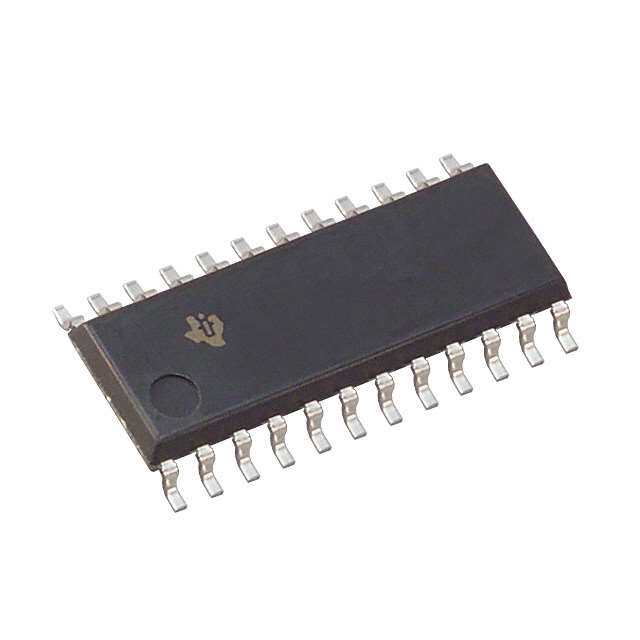

SN74ALS577ANSRG4
RoHS
RoHS compliant
RoHS compliantPackage 24-SOIC (0.209, 5.30mm Width)
Category Integrated Circuits (ICs) / Logic - Flip Flops
Description
Tape & Reel (TR) 74ALS577 74ALS Inverting flip flop 2mm 4.5V 14ns @ 5V 50pF 30MHz
PDF
/
Inventory: 1729
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.3mm
Height Seated (Max) 2mm
Technical
Max Frequency@Nom-Sup 30000000Hz
Clock Edge Trigger Type Positive Edge
Number of Input Lines 8
Power Supply Current-Max (ICC) 30mA
Trigger Type Positive Edge
Max Propagation Delay @ V, Max CL 14ns @ 5V, 50pF
Current - Output High, Low 2.6mA 24mA
Output Characteristics 3-STATE
Current - Quiescent (Iq) 18mA
Logic Function D-Type, Flip-Flop
Family ALS
Turn On Delay Time 4 ns
Propagation Delay 14 ns
Clock Frequency 30MHz
Number of Bits 8
Number of Ports 2
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 5V
Supply Voltage-Max (Vsup) 5.5V
Polarity Inverting
Number of Elements 1
Output Type Tri-State, Inverted
Qualification Status Not Qualified
Function Master Reset
Base Part Number 74ALS577
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology TTL
Packing Method TAPE AND REEL
Subcategory FF/Latches
Type D-Type
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 74ALS
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 24
Package / Case 24-SOIC (0.209, 5.30mm Width)
Mounting Type Surface Mount
Mount Surface Mount
