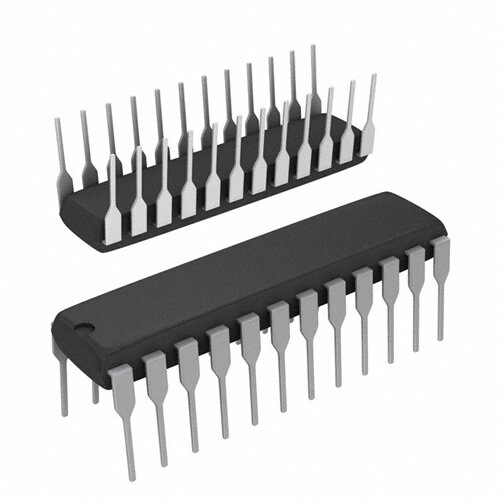

SN74AS867NTE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Logic - Counters, Dividers
Description
Synchronous DUAL Positive Edge Asynchronous logic counter 50pF 70C 50MHz 5V
PDF
/
Inventory: 5311
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 24
Weight 1.753503g
Technical
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 24
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature TCO OUTPUT
Packing Method TUBE
Technology TTL
Terminal Position DUAL
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 2.54mm
Frequency 50MHz
Pin Count 24
Operating Supply Voltage 5V
Number of Elements 1
Temperature Grade COMMERCIAL
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Load Capacitance 50pF
Number of Bits 8
Propagation Delay 22 ns
Reset Asynchronous
Family AS
Logic Function Counter
Direction Bidirectional
Sync/Async Synchronous
Clock Edge Trigger Type Positive Edge
Dimensions
Width 7.62mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
