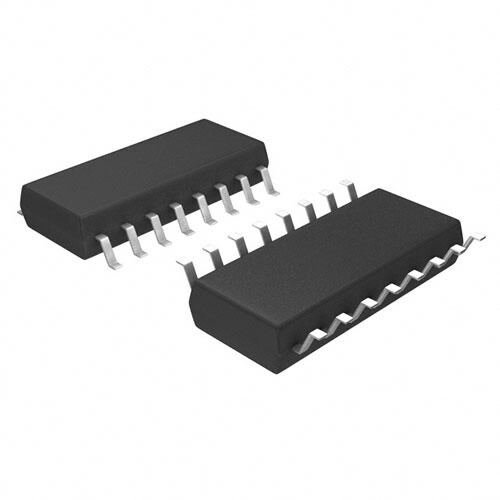

SN74ALS163BNSRG4 image
Favorite
SN74ALS163BNSRG4 image
Favorite

SN74ALS163BNSRG4

Texas Instruments
RoHS
/
Package SOP
Category Integrated Circuits (ICs) / Logic - Counters, Dividers
Description Tape & Reel (TR) COMMERCIAL e4 Nickel/Palladium/Gold (Ni/Pd/Au) divider circuit 20ns 5.3mm 5V 0.008A
PDF
/
Inventory: 9734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 5.3mm
Height Seated (Max) 2mm

Technical

Load/Preset Input YES
Clock Edge Trigger Type Positive Edge
Sync/Async Synchronous
Max I(ol) 0.008 A
Direction Unidirectional
Logic Function Counter
Family ALS
Propagation Delay 20 ns
Number of Bits 4
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade COMMERCIAL
Power Supplies 5V
Number of Elements 1
Operating Supply Voltage 5V
Pin Count 16
Frequency 40MHz
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology TTL
Packing Method TAPE AND REEL
Additional Feature TCO OUTPUT
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)

Physical

Weight 200.686274mg
Number of Pins 16
Package / Case SOP
Mount Surface Mount
