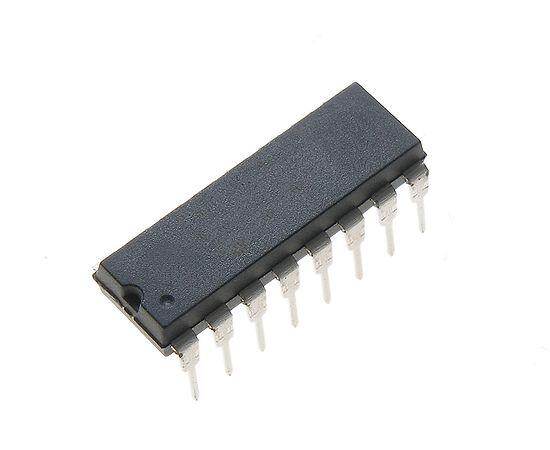

M74HC160B1R
RoHS
/
Package /
Category Integrated Circuits (ICs) / Logic - Counters, Dividers
Description
Counter ICs DISC BY STM 4/01 SYNC BINARY COUNTER
PDF
/
Inventory: 5972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 7.62mm
Height Seated (Max) 5.1mm
Technical
Mode of Operation SYNCHRONOUS
Load/Preset Input YES
Max Frequency@Nom-Sup 21000000Hz
Count Direction UP
fmax-Min 25 MHz
Propagation Delay (tpd) 190 ns
Trigger Type POSITIVE EDGE
Max I(ol) 0.004 A
Logic IC Type DECADE COUNTER
Family HC/UH
Number of Bits 4
Load Capacitance 50pF
Supply Voltage-Min (Vsup) 2V
Temperature Grade MILITARY
Power Supplies 2/6V
Supply Voltage-Max (Vsup) 6V
Operating Temperature (Min) -55°C
Operating Temperature (Max) 125°C
Qualification Status Not Qualified
JESD-30 Code R-PDIP-T16
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 4.5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology CMOS
Packing Method TUBE
Subcategory Counters
HTS Code 8542.39.00.01
Additional Feature TCO OUTPUT
Terminal Finish Matte Tin (Sn)
Number of Terminations 16
JESD-609 Code e3
Physical
Surface Mount NO
