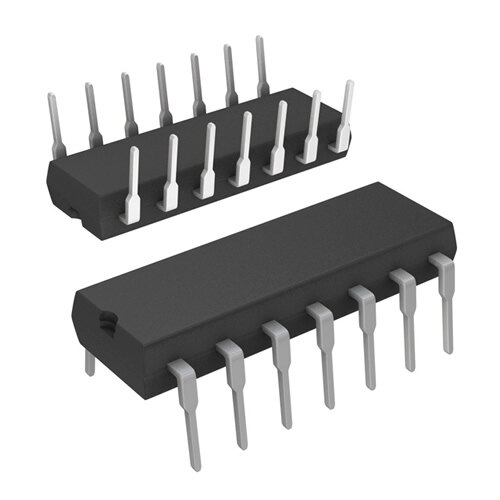

SN74LS07NE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
Rail/Tube Not Qualified Nickel/Palladium/Gold (Ni/Pd/Au) LS logic buffer -250muA 30ns 5.08mm 140mW
PDF
/
Inventory: 4876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Power Supply Current-Max (ICC) 45mA
Schmitt Trigger NO
Low Level Output Current 40mA
High Level Output Current -250μA
Number of Bits per Element 1
Max I(ol) 0.04 A
Output Characteristics OPEN-COLLECTOR
Logic Function Buffer, Inverting
Family LS
Turn On Delay Time 30 ns
Propagation Delay 30 ns
Power Dissipation-Max 140mW
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Polarity Non-Inverting
Number of Elements 6
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 6
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology TTL
Subcategory Gates
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 14
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Number of Pins 14
Package / Case PDIP
Mount Through Hole
Alternative Model
