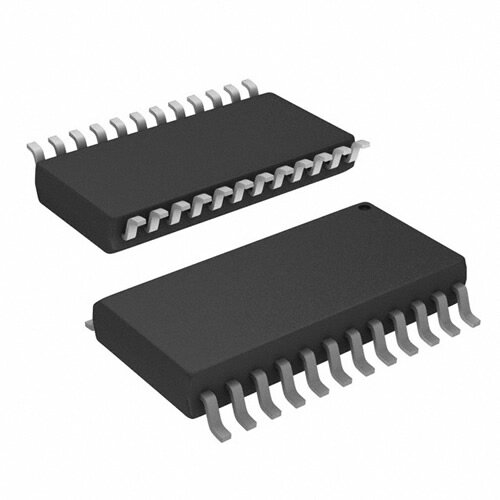

SN74ALS646ADWE4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
SOIC DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA Not Qualified Nickel/Palladium/Gold (Ni/Pd/Au) logic driver 24mA 20ns 2.65mm 5V
PDF
/
Inventory: 5222
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 24
Weight 624.398247mg
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Height Seated (Max) 2.65mm
Technical
Translation N/A
Control Type INDEPENDENT CONTROL
Low Level Output Current 15mA
High Level Output Current 24mA
Trigger Type POSITIVE EDGE
Prop. Delay@Nom-Sup 20 ns
Number of Bits per Element 8
Logic IC Type REGISTERED BUS TRANSCEIVER
Output Characteristics 3-STATE
Direction Bidirectional
Logic Function Inverting, Transceiver
Family ALS
Propagation Delay 30 ns
Number of Bits 32
Number of Ports 2
Load Capacitance 50pF
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade COMMERCIAL
Power Supplies 5V
Polarity Non-Inverting
Number of Elements 1
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology TTL
Packing Method TUBE
Subcategory Bus Driver/Transceivers
Additional Feature DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Alternative Model
