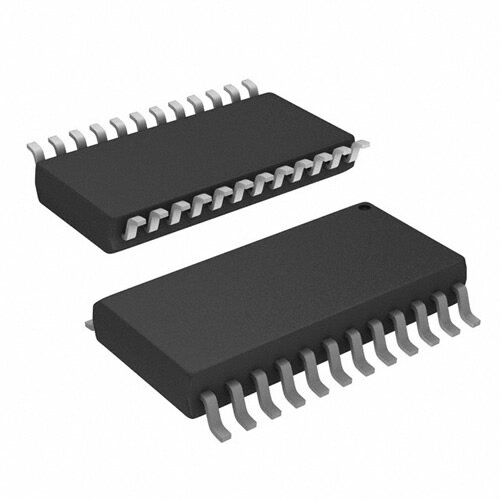

SN64BCT25244DWG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
SOIC Nickel/Palladium/Gold (Ni/Pd/Au) BCT/FBT Buffer Inverting logic receiver -80mA 5.6ns 2.35mm 5V
PDF
/
Inventory: 6424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 24
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 24
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Bus Driver/Transceivers
Packing Method TUBE
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Pin Count 24
Number of Elements 2
Polarity Non-Inverting
Power Supplies 5V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Load Capacitance 50pF
Number of Ports 2
Propagation Delay 5.6 ns
Quiescent Current 90mA
Turn On Delay Time 5.6 ns
Family BCT/FBT
Logic Function Buffer, Inverting
Output Characteristics 3-STATE
Logic IC Type BUS DRIVER
Number of Bits per Element 4
Prop. Delay@Nom-Sup 6.3 ns
High Level Output Current -80mA
Low Level Output Current 188mA
Control Type ENABLE LOW
Power Supply Current-Max (ICC) 119mA
Number of Input Lines 8
Dimensions
Height 2.35mm
Length 15.4mm
Width 7.52mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
