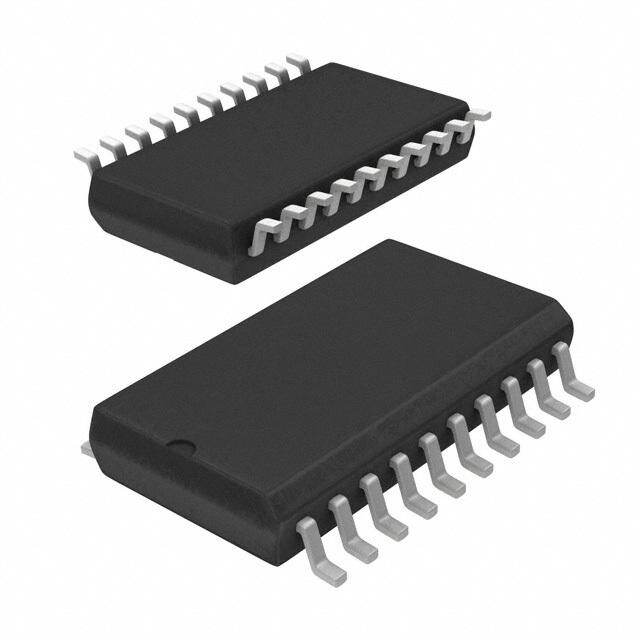

MC74HC240ADWR2
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
Cut Tape 2014 Not Qualified Tin/Lead (Sn/Pb) logic driver 7.8mA 14ns 7.5mm 500mW
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.37335
≥1 USD $0.37335
≥10 USD $0.30685
≥100 USD $0.29735
≥500 USD $0.28785
≥1000 USD $0.27835
Inventory: 5004
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 7.5mm
Technical
Number of Output Lines 3
Number of Input Lines 8
Control Type ENABLE LOW
Low Level Output Current 7.8mA
High Level Output Current 7.8mA
Max I(ol) 0.006 A
Logic IC Type BUS DRIVER
Number of Inputs 4
Logic Function Buffer, Inverter
Family HC/UH
Turn On Delay Time 14 ns
Quiescent Current 4μA
Propagation Delay 14 ns
Number of Bits 4
Number of Ports 2
Load Capacitance 50pF
Power Dissipation-Max 500mW
Min Supply Voltage 2V
Max Supply Voltage 6V
Number of Circuits 2
Temperature Grade MILITARY
Polarity Inverting
Qualification Status Not Qualified
Pin Count 20
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Supply Voltage 3V
Number of Functions 2
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Bus Driver/Transceivers
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3
JESD-609 Code e0
Published 2014
Packaging Cut Tape
Physical
Number of Pins 20
Package / Case SOIC
Mount Surface Mount
Alternative Model
