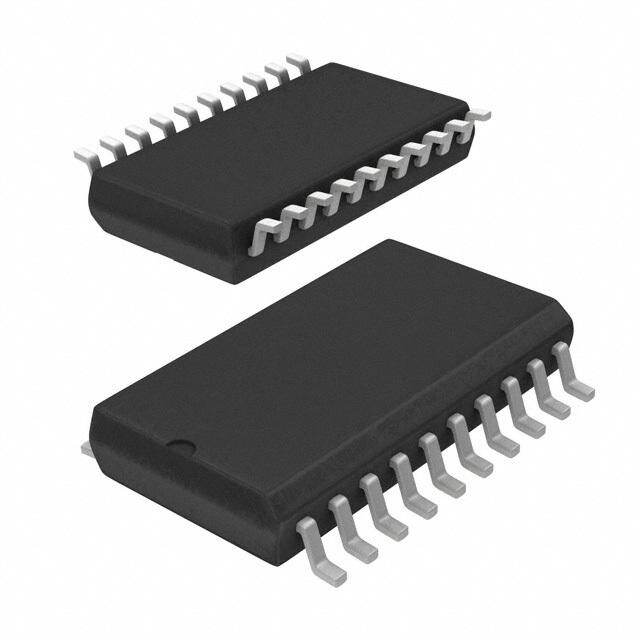

MC74AC245DWR2
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
Cut Tape (CT) 2006 WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL Not Qualified logic buffer 24mA 9ns 2.65mm 500mW
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.28215
≥1 USD $0.28215
≥10 USD $0.2318
≥100 USD $0.2242
≥500 USD $0.21755
≥1000 USD $0.20995
Inventory: 5765
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Height Seated (Max) 2.65mm
Technical
Translation N/A
Count Direction BIDIRECTIONAL
Control Type COMMON CONTROL
Low Level Output Current 24mA
High Level Output Current 24mA
Prop. Delay@Nom-Sup 9 ns
Max I(ol) 0.024 A
Logic IC Type BUS TRANSCEIVER
Output Characteristics 3-STATE
Logic Function Inverting, Transceiver
Family AC
Propagation Delay 8.5 ns
Number of Bits 8
Number of Ports 2
Power Dissipation-Max 500mW
Min Supply Voltage 2V
Max Supply Voltage 6V
Number of Circuits 8
Temperature Grade INDUSTRIAL
Power Supplies 3.3/5V
Polarity Non-Inverting
Number of Elements 1
Qualification Status Not Qualified
Pin Count 20
Time@Peak Reflow Temperature-Max (s) 30
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Bus Driver/Transceivers
Additional Feature WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e0
Published 2006
Packaging Cut Tape (CT)
Physical
Number of Pins 20
Package / Case SOIC
Mount Surface Mount
