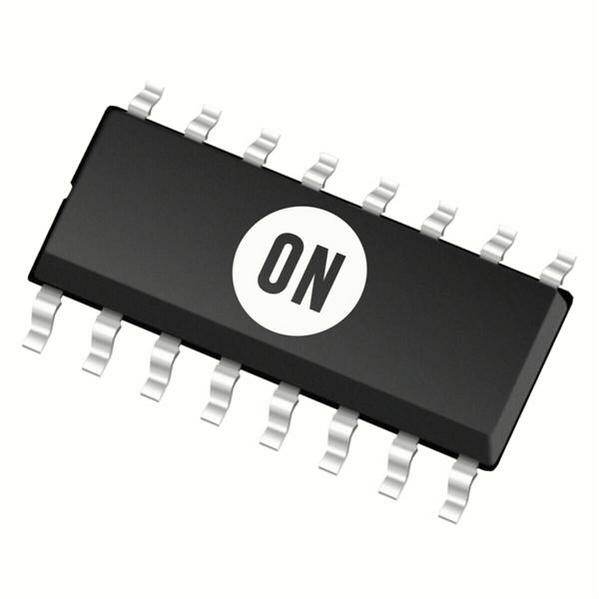

MC10H116DR2
RoHS
/
Package SO
Category Integrated Circuits (ICs) / Logic - Buffers, Drivers, Receivers, Transceivers
Description
SO 2006 Not Qualified Tin/Lead (Sn/Pb) logic receiver 21mA 1.75mm 85mW -5.46V
PDF
/
Inventory: 6088
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Length 9.9mm
Height Seated (Max) 1.75mm
Technical
Number of Receivers 3
Negative Supply Voltage-Nom -5.2V
Interface Standard GENERAL PURPOSE
Input Characteristics DIFFERENTIAL
Differential Output YES
Logic Function Receiver
Nominal Supply Current 21mA
Power Dissipation-Max 85mW
Min Supply Voltage -4.94V
Max Supply Voltage -5.46V
Temperature Grade COMMERCIAL EXTENDED
Power Supplies -5.2V
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1.27mm
Number of Functions 3
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Technology ECL
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e0
Published 2006
Physical
Number of Pins 16
Surface Mount YES
Package / Case SO
