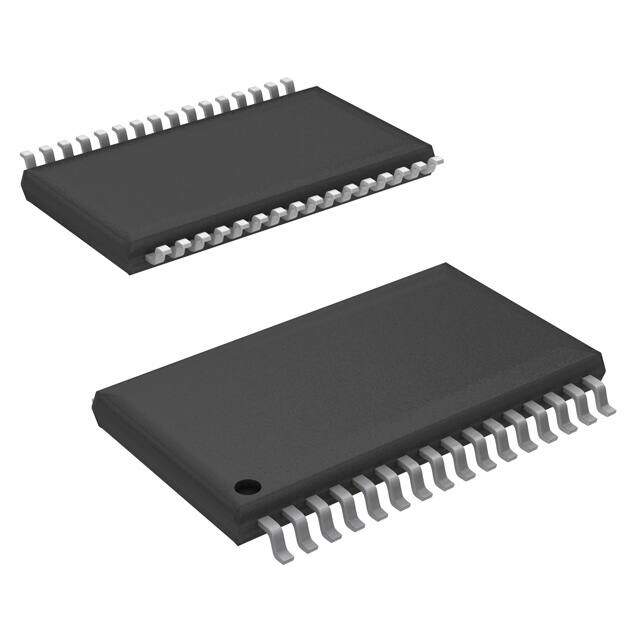

SN761672ADA
RoHS
RoHS compliant
RoHS compliantPackage 32-TSSOP (0.240, 6.10mm Width)
Category Integrated Circuits (ICs) / Linear - Video Processing
Description
Tuner Tube SN761672 Surface Mount video processing unit 0.65mm 90mA 5.5V 55.25MHz
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 2029
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 32-TSSOP (0.240, 6.10mm Width)
Number of Pins 32
Weight 173.300635mg
Technical
Packaging Tube
JESD-609 Code e4
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 32
ECCN Code EAR99
Type Tuner
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -20°C
Applications TV
Subcategory Other Consumer ICs
Max Power Dissipation 1.04W
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SN761672
Pin Count 32
Number of Outputs 1
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Supply Current-Max 90mA
Max Frequency 4MHz
Number of Bands 3
Noise Figure 10 dB
Built-in IF Amplifier YES
Input Frequency-Min (RF) 55.25MHz
Dimensions
Width 6.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
