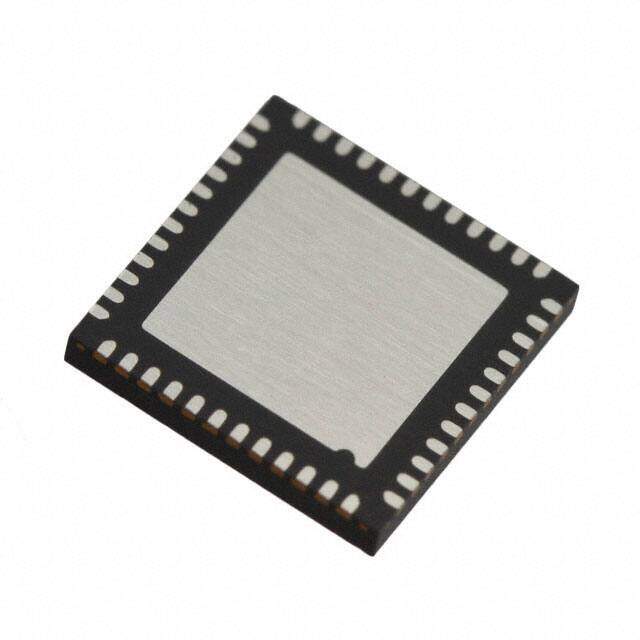

STHDLS101AQTR image
Favorite
STHDLS101AQTR image
Favorite

STHDLS101AQTR

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 48-QFN
Category Integrated Circuits (ICs) / Linear - Video Processing
Description Level Shifter Digi-Reel? STHDLS Surface Mount video processing unit 2.7Gbps 7mm 120mA 3.6V
PDF
/
Inventory: 6159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 48-QFN
Number of Pins 48

Technical

Packaging Digi-Reel?
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 48
Type Level Shifter
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications HDMI
Subcategory Other Consumer ICs
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number STHDLS
Pin Count 48
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 3V
Number of Channels 4
Nominal Supply Current 120mA
Data Rate 2.7 Gbps
Resolution 4.5 B

Dimensions

Height Seated (Max) 1mm
Length 7mm
Width 7mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
