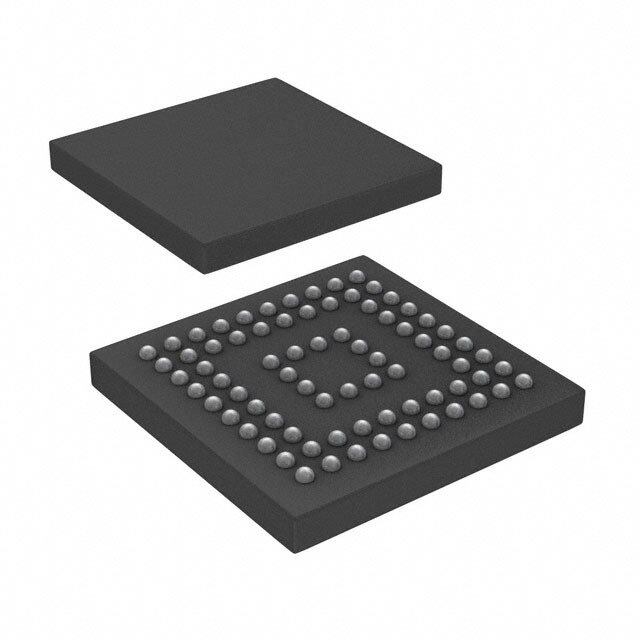

ADV7610BBCZ-P
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Linear - Video Processing
Description
BGA Surface Mount HDMI I2C EAR99 video processing unit 6mm 95.7mA 1.89V 165MHz
PDF
/
Buying Options
Total Price: USD $14.76
Unit Price: USD $14.76442
≥1 USD $14.76442
≥10 USD $13.92869
≥100 USD $13.14028
≥500 USD $12.39649
≥1000 USD $11.6948
Inventory: 1706
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 1.4mm
Technical
Number of Receivers 2
Consumer IC Type CONSUMER CIRCUIT
Nominal Supply Current 95.7mA
Operating Supply Current 575mA
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Interface HDMI, I2C
Number of Channels 8
Temperature Grade INDUSTRIAL
Pin Count 76
Time@Peak Reflow Temperature-Max (s) 30
Frequency 165MHz
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Other Consumer ICs
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 76
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e1
Physical
Number of Pins 76
Package / Case BGA
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 week ago)
