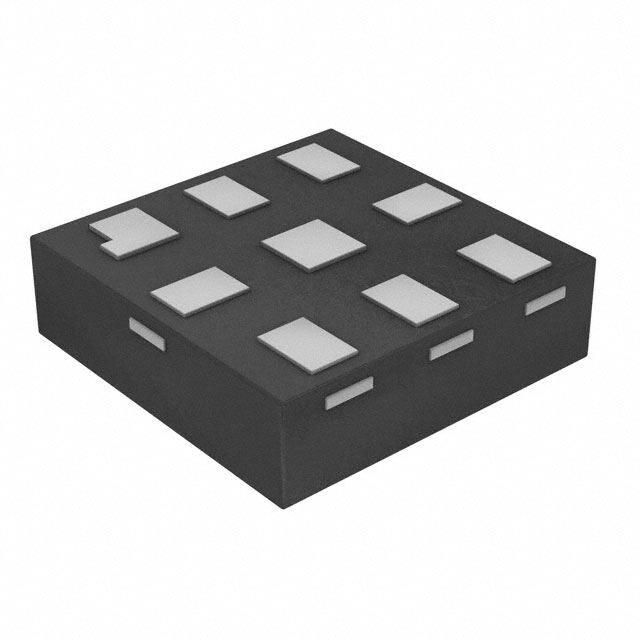

TC75W70L8X,LF
RoHS
/
Package 8-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape & Reel (TR) Push-Pull Obsolete Surface Mount comparator circuit 1pA 20ns 1.6mm 6mV
PDF
/
Inventory: 6500
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-UFQFN Exposed Pad
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2014
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type General Purpose
Subcategory Comparator
Technology CMOS
Terminal Position BOTTOM
Terminal Form BU
Number of Functions 2
Supply Voltage 1.5V
Terminal Pitch 0.5mm
JESD-30 Code S-PBGA-B8
Output Type Push-Pull
Number of Elements 2
Output Current 18mA
Propagation Delay 800 ns
Quiescent Current 47μA
Response Time 20 ns
Voltage - Supply, Single/Dual (±) 1.3V~5.5V
Input Offset Voltage (Vos) 6mV
Supply Voltage Limit-Max 6V
Max Input Current 1pA
Input Bias Current 1pA
Current - Quiescent (Max) 47μA
Voltage - Input Offset (Max) 6mV @ 3V
Current - Input Bias (Max) 1pA @ 3V
Current - Output (Typ) 18mA @ 3V
Dimensions
Height Seated (Max) 0.55mm
Length 1.6mm
Width 1.6mm
Compliance
RoHS Status RoHS Compliant
