TLV7031DPWR
RoHS
RoHS compliant

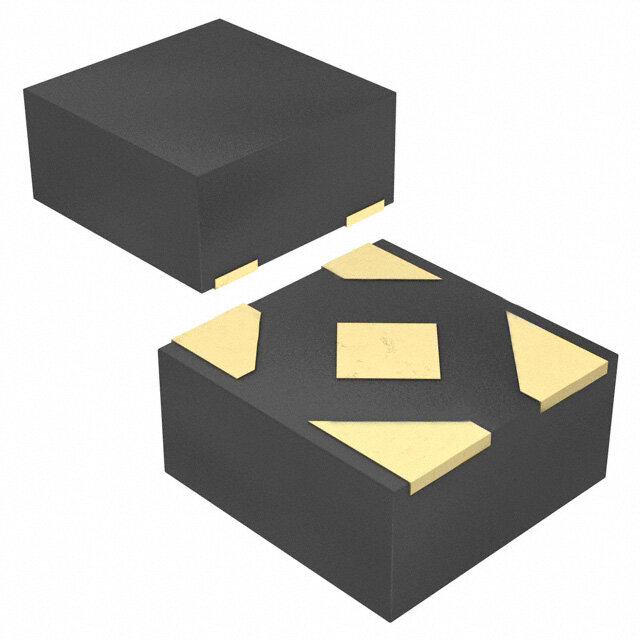

RoHS compliantPackage 5-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape & Reel (TR) TLV7031 Push-Pull 0.000002muA comparator circuit 2pA 4.5ns 800mum 7mV
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5896
≥1 USD $0.5896
≥10 USD $0.5192
≥100 USD $0.487872
≥500 USD $0.398024
≥1000 USD $0.369706
≥3000 USD $0.314653
Inventory: 8954
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mounting Type Surface Mount
Package / Case 5-XFDFN Exposed Pad
Surface Mount YES
Number of Pins 5
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Comparator
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.48mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TLV7031
Output Type Push-Pull
Number of Elements 1
Supply Current-Max 0.0009mA
Response Time 4.5 ns
Voltage - Supply, Single/Dual (±) 1.6V~6.5V
Average Bias Current-Max (IIB) 0.000002μA
Supply Voltage Limit-Max 7V
Current - Quiescent (Max) 335nA
Voltage - Input Offset (Max) 8mV @ 5V
Current - Input Bias (Max) 2pA
Hysteresis 7mV
CMRR, PSRR (Typ) 73dB CMRR, 77dB PSRR
Propagation Delay (Max) 3μs (Typ)
Dimensions
Height 0m
Length 800μm
Width 800μm
Thickness 370μm
Compliance
RoHS Status ROHS3 Compliant
