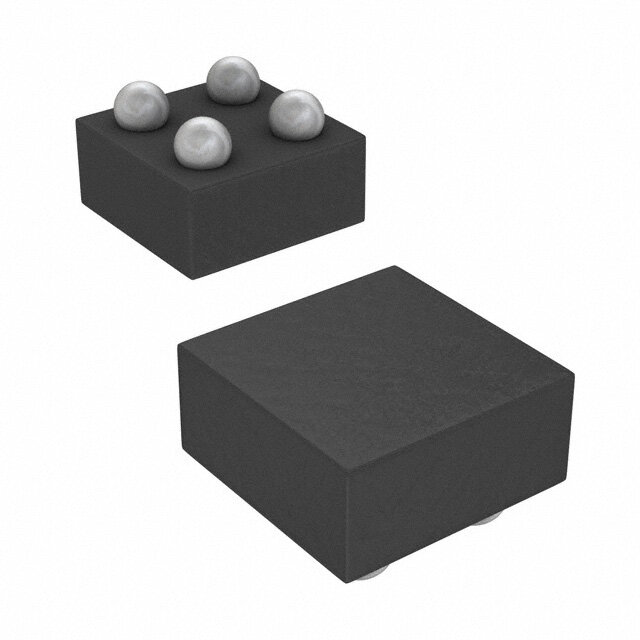

TLV4021R1YKAR
RoHS
RoHS compliant
RoHS compliantPackage 4-XFBGA, DSBGA
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape & Reel (TR) TLV4021 Open-Drain Rail-to-Rail 0.005muA comparator circuit 10pA @ 5V 450ns 0.7mm 20mV
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.89936
≥100 USD $0.8536
≥500 USD $0.701184
≥1000 USD $0.655459
≥3000 USD $0.579234
Inventory: 1741
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 0.7mm
Length 0.7mm
Height Seated (Max) 0.4mm
Technical
Propagation Delay (Max) 360ns
Current - Output (Typ) 55mA @ 5V
Hysteresis 20mV
Current - Input Bias (Max) 10pA @ 5V
Current - Quiescent (Max) 3.5μA
Supply Voltage Limit-Max 6V
Average Bias Current-Max (IIB) 0.005μA
Voltage - Supply, Single/Dual (±) 1.6V~5.5V
Response Time 450 ns
Supply Current-Max 0.005mA
Number of Elements 1
Output Type Open-Drain, Rail-to-Rail
JESD-30 Code S-XBGA-B4
Base Part Number TLV4021
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.35mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Comparator
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type General Purpose
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 4-XFBGA, DSBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
