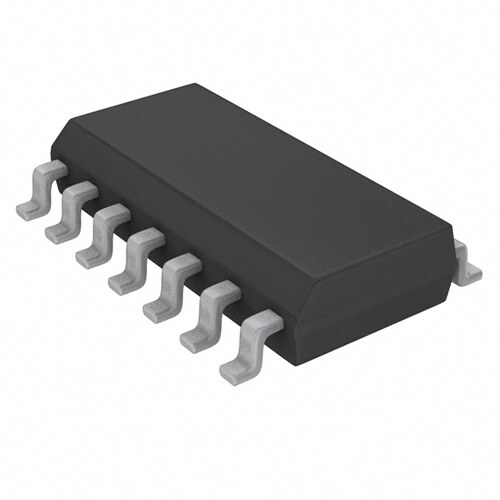

TLV2304IDG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Rail/Tube 0.001muA Nickel/Palladium/Gold (Ni/Pd/Au) e4 comparator circuit 0.0005muA 55mus 8.65mm 5mV
PDF
/
Inventory: 2230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.905mm
Length 8.65mm
Height Seated (Max) 1.75mm
Technical
Wideband NO
Programmable Power NO
Bias Current-Max (IIB) @25C 0.0005μA
Min Dual Supply Voltage 1.25V
Micropower YES
Low-Bias YES
Max Dual Supply Voltage 8V
Frequency Compensation YES
Low-Offset NO
Power Supply Rejection Ratio (PSRR) 105dB
Average Bias Current-Max (IIB) 0.001μA
Voltage Gain 120dB
Unity Gain BW-Nom 5.5 kHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 200μA
Current - Input Bias 500pA
Common Mode Rejection Ratio 88 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Slew Rate 2500 V/us
Response Time 55 μs
Current - Output 200mA
Max Supply Current 1.7μA
Power Dissipation 1.022W
Nominal Supply Current 1.7μA
Power Dissipation-Max 1.022W
Min Supply Voltage 2.5V
Max Supply Voltage 16V
Number of Channels 2
Temperature Grade AUTOMOTIVE
Number of Elements 4
Pin Count 14
Supply Voltage 2.7V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 122.413241mg
Number of Pins 14
Package / Case SOIC
Mount Surface Mount
