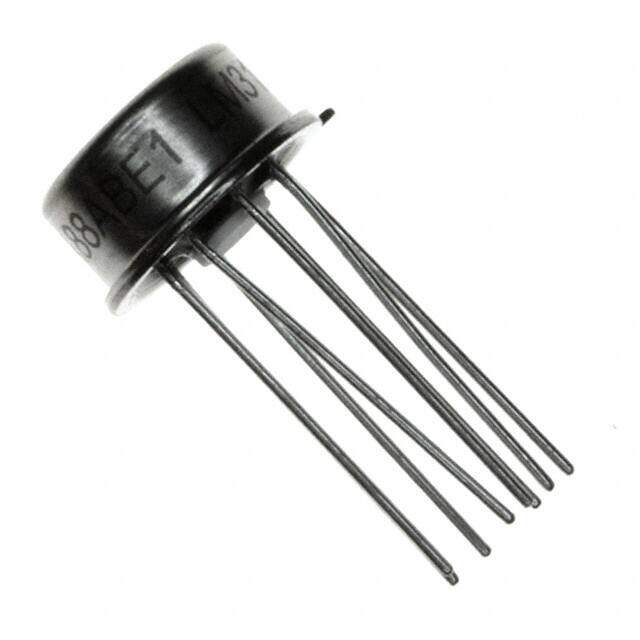

LM311H/NOPB
RoHS
RoHS compliant
RoHS compliantPackage TO-99-8 Metal Can
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Box LM311 DTL MOS Open-Collector Open-Emitter RTL TTL 0.3muA comparator circuit 0.25muA @ ±15V 200ns 9.08mm 7.5mV
PDF
/
Buying Options
Total Price: USD $7.52
Unit Price: USD $7.51735
≥1 USD $7.51735
≥10 USD $6.16835
≥100 USD $5.9755
≥500 USD $5.78265
≥1000 USD $5.59075
Inventory: 1949
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 4.4mm
Width 9.08mm
Length 9.08mm
Height 5.72mm
Technical
Current - Input Bias (Max) 0.25μA @ ±15V
Voltage - Input Offset (Max) 7.5mV @ ±15V
Input Bias Current 250nA
Average Bias Current-Max (IIB) 0.3μA
Voltage Gain 106.02dB
Neg Supply Voltage-Nom (Vsup) -15V
Input Offset Voltage (Vos) 7.5mV
Voltage - Supply, Single/Dual (±) 5V~36V ±2.5V~18V
Response Time 200 ns
Turn On Delay Time 100 ns
Quiescent Current 7.5mA
Propagation Delay 100 ns
Max Supply Current -5mA
Power Dissipation 500mW
Nominal Supply Current 7.5mA
Number of Elements 1
Output Type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
Pin Count 8
Base Part Number LM311
Supply Voltage 15V
Number of Functions 1
Terminal Form WIRE
Terminal Position BOTTOM
Technology BIPOLAR
Max Power Dissipation 500mW
Subcategory Comparator
Type General Purpose
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Box
Operating Temperature 0°C~70°C
Physical
Number of Pins 8
Package / Case TO-99-8 Metal Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
