TSX3704IQ4T
RoHS
RoHS compliant

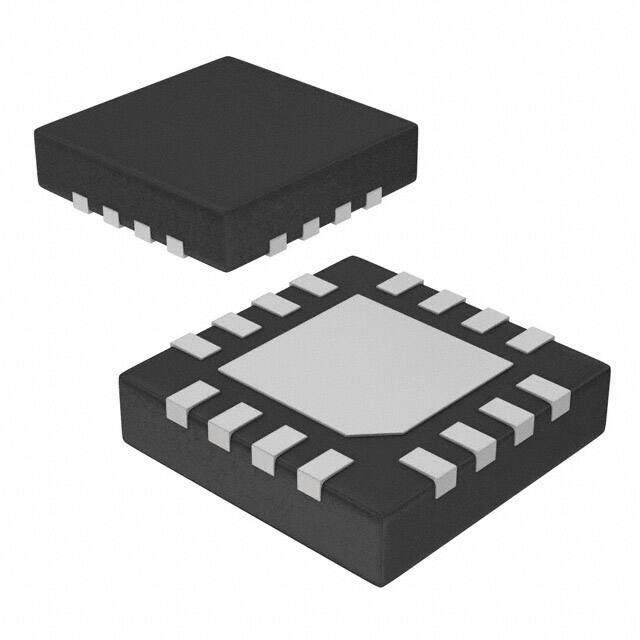

RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape & Reel (TR) TSX3704 Push-Pull 0.0012muA comparator circuit 10pA 2400ns 3mm 3V
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.5664
≥1 USD $1.5664
≥10 USD $1.40976
≥100 USD $1.330208
≥500 USD $1.133264
≥1000 USD $1.064061
≥3000 USD $0.931058
Inventory: 3047
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Type CMOS
Subcategory Comparator
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 4
Supply Voltage 3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TSX3704
JESD-30 Code S-XQCC-N16
Output Type Push-Pull
Number of Elements 4
Response Time 2400 ns
Voltage - Supply, Single/Dual (±) 2.7V~16V ±1.35V~8V
Average Bias Current-Max (IIB) 0.0012μA
Supply Voltage Limit-Max 18V
Current - Quiescent (Max) 10μA
Voltage - Input Offset (Max) 5mV
Current - Input Bias (Max) 10pA
CMRR, PSRR (Typ) 95dB CMRR, 90dB PSRR
Dimensions
Height Seated (Max) 1mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
