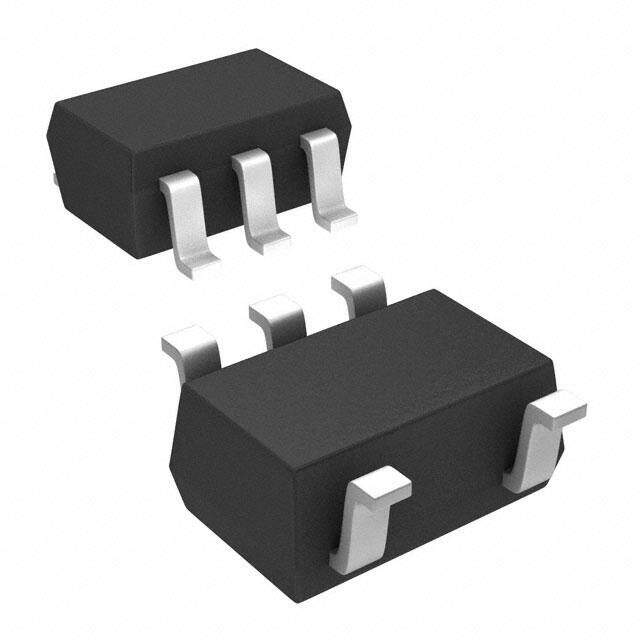

TS3011ICT
RoHS
RoHS compliant
RoHS compliantPackage 5-TSSOP, SC-70-5, SOT-353
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape & Reel (TR) TS3011 Push-Pull Rail-to-Rail Nickel/Palladium/Gold (Ni/Pd/Au) comparator circuit 0.00002muA 16ns 2.2mm 2mV
PDF
/
Buying Options
Total Price: USD $2.47
Unit Price: USD $2.4728
≥1 USD $2.4728
≥10 USD $2.21936
≥100 USD $2.093696
≥500 USD $1.783936
≥1000 USD $1.675027
≥3000 USD $1.465658
Inventory: 21179
Minimum: 1
-
+
Technical Details
Technical
Hysteresis 2mV
Natural Thermal Resistance 205 °C/W
Input Bias Current 20pA
Bias Current-Max (IIB) @25C 0.00002μA
Input Offset Voltage (Vos) 8mV
Voltage - Supply, Single/Dual (±) 2.2V~5V
Common Mode Rejection Ratio 74 dB
Response Time 16 ns
Quiescent Current 1.1mA
Max Supply Current 690μA
Nominal Supply Current 690μA
Temperature Grade AUTOMOTIVE
Number of Elements 1
Output Type Push-Pull, Rail-to-Rail
Pin Count 5
Base Part Number TS3011
Time@Peak Reflow Temperature-Max (s) 30
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Comparator
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type General Purpose
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Packaging Tape & Reel (TR)
Dimensions
Height 1mm
Length 2.2mm
Width 1.35mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 5
Package / Case 5-TSSOP, SC-70-5, SOT-353
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 12 Weeks
