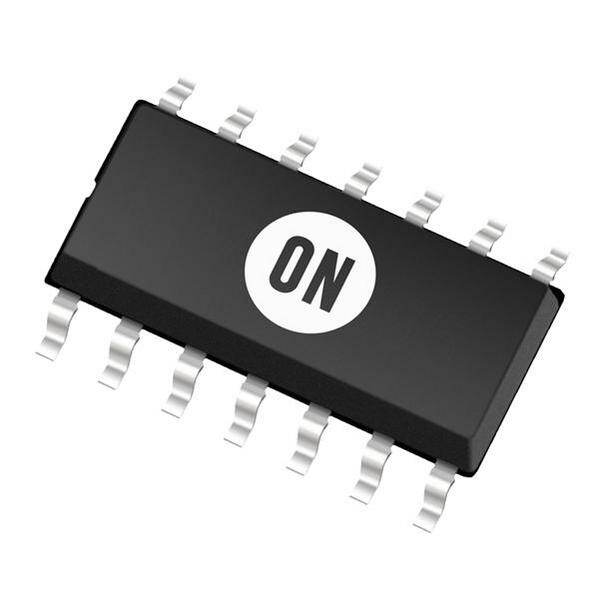

LM2901VDR2
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Tape and Reel OPEN-COLLECTOR 0.5muA Tin/Lead (Sn/Pb) comparator circuit 0.25muA 1.3mus 8.65mm 5V
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.41515
≥1 USD $0.41515
≥10 USD $0.34105
≥100 USD $0.32965
≥500 USD $0.3192
≥1000 USD $0.30875
Inventory: 1602
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 3.9mm
Length 8.65mm
Height Seated (Max) 1.75mm
Technical
Bias Current-Max (IIB) @25C 0.25μA
Min Dual Supply Voltage 1.5V
Max Dual Supply Voltage 18V
Average Bias Current-Max (IIB) 0.5μA
Voltage Gain 100dB
Input Offset Voltage (Vos) 7mV
Output Current per Channel 16mA
Current - Input Bias 250nA
Amplifier Type COMPARATOR
Response Time 1.3 μs
Current - Output 16mA
Max Supply Current 2mA
Power Dissipation 1W
Nominal Supply Current 2mA
Power Dissipation-Max 1W
Min Supply Voltage 3V
Max Supply Voltage 36V
Number of Channels 4
Temperature Grade AUTOMOTIVE
Power Supplies 5V
Output Type OPEN-COLLECTOR
Qualification Status Not Qualified
Pin Count 14
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Comparator
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e0
Published 2007
Packaging Tape and Reel
Physical
Number of Pins 14
Package / Case SOIC
Mount Surface Mount
