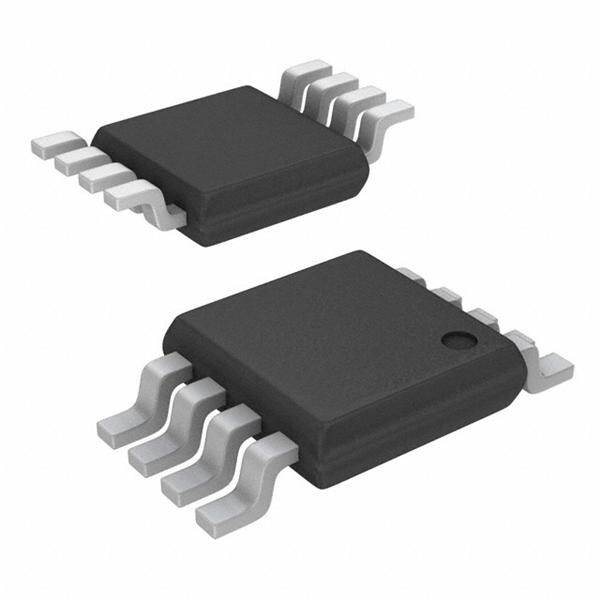

TC1026CEUA image
Favorite
TC1026CEUA image
Favorite
RoHS
/
Package MSOP
Category Integrated Circuits (ICs) / Linear - Comparators
Description MSOP Matte Tin (Sn) e3 100pA comparator circuit 3mA 4mus 3mm 1.5mV
PDF
/
Inventory: 8661
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case MSOP
Surface Mount YES
Number of Pins 8

Technical

JESD-609 Code e3
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 8
Qualification Status Not Qualified
Temperature Grade INDUSTRIAL
Number of Channels 1
Max Supply Voltage 5.5V
Min Supply Voltage 1.8V
Analog IC - Other Type ANALOG CIRCUIT
Nominal Supply Current 18μA
Max Supply Current 18μA
Current - Output 3mA
Response Time 4 μs
Current - Input Bias 100pA
Output Current per Channel 3mA
Input Offset Voltage (Vos) 1.5mV
Gain Bandwidth Product 90 kHz

Dimensions

Length 3mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
