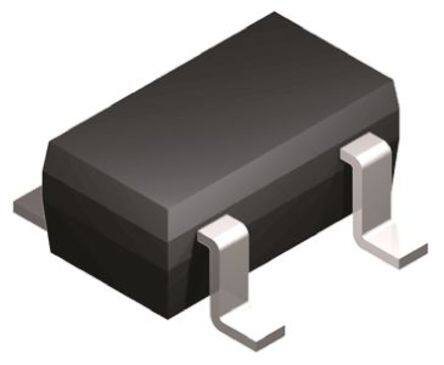

MAX999EUK+
RoHS
/
Package SOT-23
Category Integrated Circuits (ICs) / Linear - Comparators
Description
Cut Tape 30muA e3 15muA comparator circuit 30muA 4.5ns 2.9mm 500muV
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.4903
≥1 USD $3.4903
≥10 USD $2.86425
≥100 USD $2.77495
≥500 USD $2.68565
≥1000 USD $2.5954
Inventory: 9561
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Tin
Mount Surface Mount
Package / Case SOT-23
Number of Pins 5
Technical
Packaging Cut Tape
Published 2004
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Comparators
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Pin Count 5
Operating Supply Voltage 5V
Temperature Grade INDUSTRIAL
Number of Channels 1
Max Supply Voltage 5.5V
Min Supply Voltage 2.7V
Power Dissipation-Max 571mW
Nominal Supply Current 5mA
Response Time 4.5 ns
Amplifier Type COMPARATOR
Common Mode Rejection Ratio 80 dB
Current - Input Bias 15μA
Output Current per Channel 4mA
Input Offset Voltage (Vos) 500μV
Average Bias Current-Max (IIB) 30μA
Bias Current-Max (IIB) @25C 30μA
Dimensions
Height 1.45mm
Length 2.9mm
Width 1.63mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
