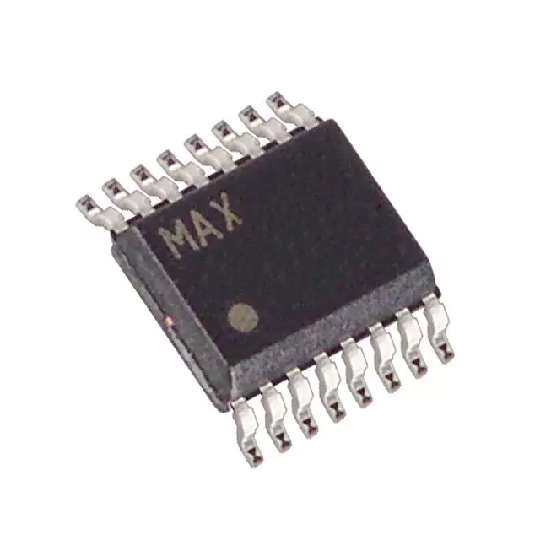

MAX9693EEE+T
RoHS
/
Package QSOP
Category Integrated Circuits (ICs) / Linear - Comparators
Description
QSOP OPEN-EMITTER 30muA Matte Tin (Sn) comparator circuit 50mA 2ns 9.9mm 6.5mV
PDF
/
Buying Options
Total Price: USD $8.27
Unit Price: USD $8.274968
≥1 USD $8.274968
≥10 USD $7.806572
≥100 USD $7.364687
≥500 USD $6.94782
≥1000 USD $6.554551
Inventory: 1174
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.9mm
Length 9.9mm
Height Seated (Max) 1.75mm
Technical
Neg Supply Voltage-Max (Vsup) -6V
Supply Voltage Limit-Max 6V
Power Supply Rejection Ratio (PSRR) 60dB
Average Bias Current-Max (IIB) 30μA
Voltage Gain 70dB
Neg Supply Voltage-Nom (Vsup) -5.2V
Input Offset Voltage (Vos) 6.5mV
Current - Input Bias 20μA
Common Mode Rejection Ratio 60 dB
Amplifier Type COMPARATOR
Response Time 2 ns
Quiescent Current 46mA
Propagation Delay 1.8 ns
Current - Output 50mA
Max Supply Current 46mA
Nominal Supply Current 46mA
Power Dissipation-Max 771.5mW
Number of Channels 2
Temperature Grade INDUSTRIAL
Output Type OPEN-EMITTER
Pin Count 16
Supply Voltage 5V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Comparator
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Physical
Number of Pins 16
Package / Case QSOP
Mount Surface Mount
