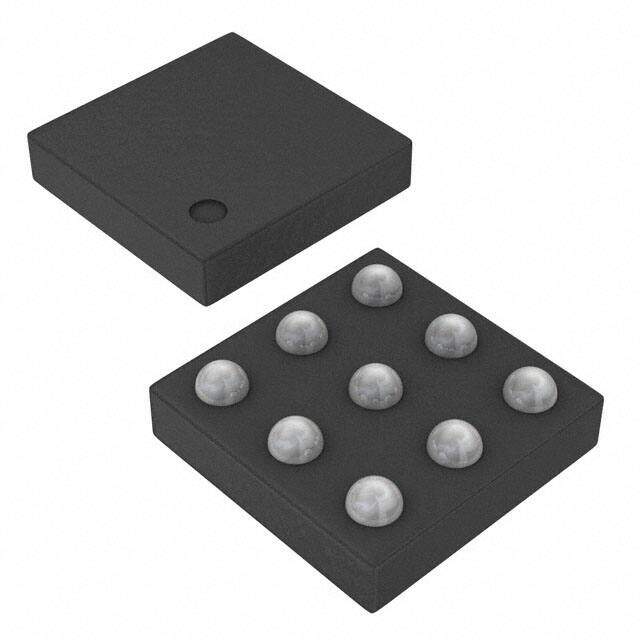

THS7319IZSVR
RoHS
RoHS compliant
RoHS compliantPackage 9-XFBGA, CSPBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Video Amps and Modules
Description
INDUSTRIAL Surface Mount Single BICMOS Video Amp 80V/mus 20MHz 3V 3.4mA
PDF
/
Buying Options
Total Price: USD $8.49
Unit Price: USD $8.493
≥1 USD $8.493
≥10 USD $6.9692
≥100 USD $6.7507
≥500 USD $6.53315
≥1000 USD $6.3156
Inventory: 1176
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 9-XFBGA, CSPBGA
Number of Pins 9
Technical
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 9
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications Buffer
Subcategory Audio/Video Amplifiers
Technology BICMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number THS7319
Pin Count 9
Output Type Rail-to-Rail
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 5V
Power Supplies 2.6/5V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 2.6V
Number of Channels 3
Number of Circuits 3
Operating Supply Current 3.4mA
Nominal Supply Current 3.4mA
Slew Rate 80V/μs
Voltage - Supply, Single/Dual (±) 2.5V~5.5V
Output Current per Channel 70mA
Supply Type Single
Bandwidth 13500 kHz
Gain 6 dB
-3db Bandwidth 20MHz
Consumer IC Type VIDEO AMPLIFIER
Dimensions
Height 450μm
Length 1.5mm
Width 1.5mm
Thickness 365μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
