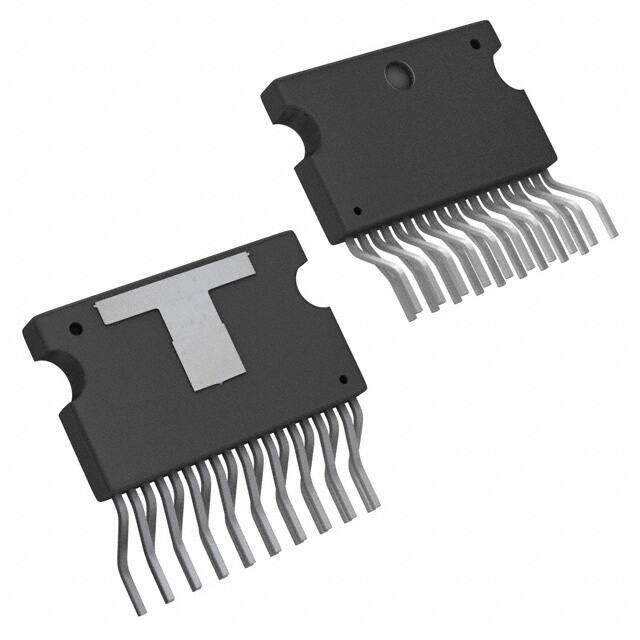

LM2476TB/NOPB
RoHS
RoHS compliant
RoHS compliantPackage TO-247-19 Formed Leads
Category Integrated Circuits (ICs) / Linear - Amplifiers - Video Amps and Modules
Description
Surface Mount Through Hole BIPOLAR ROHS3Compliant Obsolete audio video amplifier circuit 885V 34mA 0.95mm 100C
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.4181
≥1 USD $3.4181
≥10 USD $2.80535
≥100 USD $2.717
≥500 USD $2.6296
≥1000 USD $2.5422
Inventory: 14916
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount, Through Hole
Mounting Type Surface Mount
Package / Case TO-247-19 Formed Leads
Technical
Packaging Tray
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 19
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Applications Bias Clamp, CRT Driver
Subcategory Audio/Video Amplifiers
Technology BIPOLAR
Terminal Position ZIG-ZAG
Terminal Pitch 0.95mm
Base Part Number LM2476
JESD-30 Code R-PZIP-T19
Power Supplies 885V
Number of Circuits 3
Operating Supply Current 34mA
Voltage - Supply, Single/Dual (±) 60V~85V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
