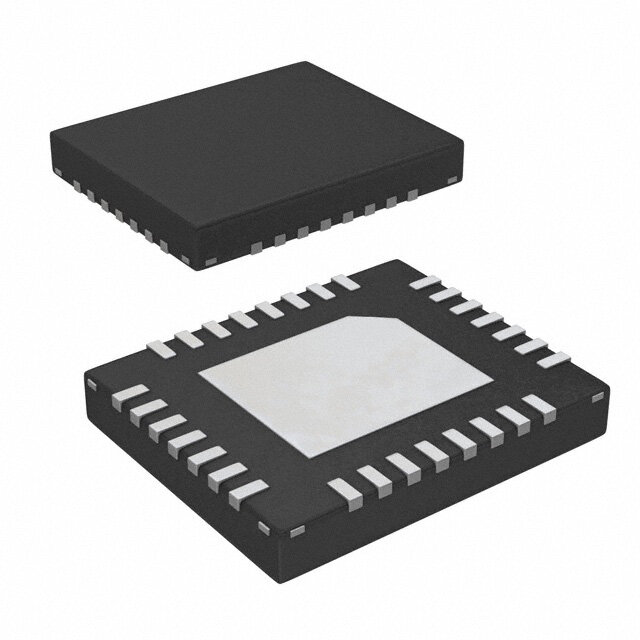

BUF18830AIRGFT
RoHS
RoHS compliant
RoHS compliantPackage 38-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Video Amps and Modules
Description
BUF18830 Tape & Reel (TR) e4 QUAD video amp IC 85C 1mm 500muA 20V
PDF
/
Buying Options
Total Price: USD $7.04
Unit Price: USD $7.04
≥1 USD $7.04
≥10 USD $6.35536
≥100 USD $6.060032
≥500 USD $5.26196
Inventory: 536
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 880μm
Width 5mm
Length 7mm
Height 1mm
Technical
Output Current per Channel 400mA
Voltage - Supply, Single/Dual (±) 6.5V~20V
Max Input Voltage 20V
Slew Rate 45V/μs
Min Input Voltage 6.5V
Operating Supply Current 500μA
Analog IC - Other Type ANALOG CIRCUIT
Number of Circuits 20
Number of Channels 18
Temperature Grade INDUSTRIAL
Output Type Rail-to-Rail
Pin Count 38
Base Part Number BUF18830
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology CMOS
Subcategory Other Analog ICs
HTS Code 8542.39.00.01
Applications TFT-LCD Panels: Gamma Buffer, VCOM Driver
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 38
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Number of Pins 38
Package / Case 38-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 8 Weeks
