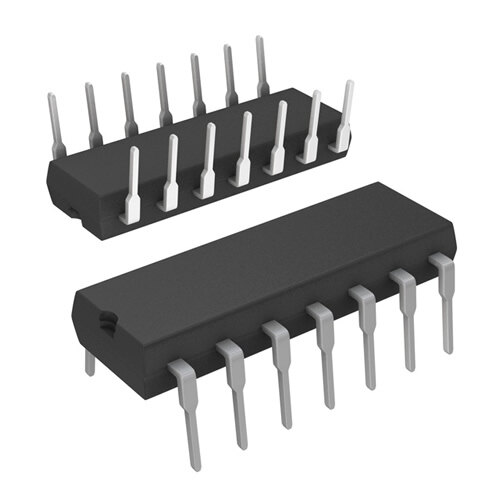

TLE2144INE4
RoHS
/
Package N
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
IC OPAMP GP 5.9MHZ QUAD 14DIP
PDF
/
Inventory: 5650
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 19.305mm
Height Seated (Max) 5.08mm
Technical
Max I/O Voltage 3.8mV
Nominal Gain Bandwidth Product 5.8MHz
Min Dual Supply Voltage 2V
Max Dual Supply Voltage 22V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 1.7μA
Voltage Gain 99.55dB
Unity Gain BW-Nom 6000 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 5.8MHz
Bandwidth 5.8MHz
Input Offset Voltage (Vos) 600μV
Output Current per Channel 50mA
Current - Input Bias 2μA
Common Mode Rejection Ratio 85 dB
Architecture VOLTAGE-FEEDBACK
Slew Rate 45 V/μs
Current - Output 50mA
Nominal Supply Current 18mA
Operating Supply Current 13.8mA
Min Supply Voltage 4V
Max Supply Voltage 44V
Number of Channels 4
Power Supplies 5/+-15V
Operating Supply Voltage 22V
Pin Count 14
Supply Voltage 15V
Number of Functions 4
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology BIPOLAR
Packing Method TUBE
Min Operating Temperature -40°C
Max Operating Temperature 105°C
ECCN Code EAR99
Number of Terminations 14
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 14
Surface Mount NO
Package / Case N
Alternative Model
