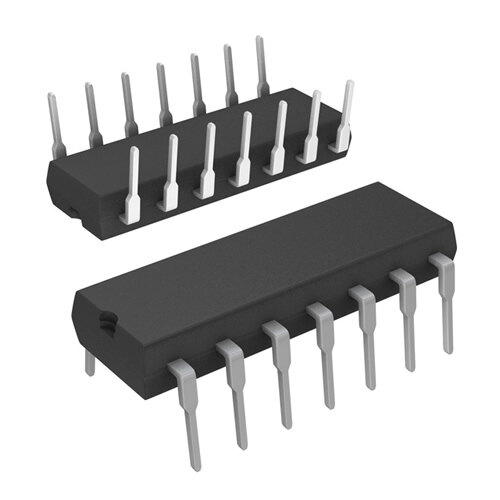

TLE2144CNE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant e4 Nickel/Palladium/Gold (Ni/Pd/Au) PDIP op amp buffer circuit 19.305mm 13.8mA 22V 6000kHz
PDF
/
Inventory: 4778
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 19.305mm
Height Seated (Max) 5.08mm
Technical
Max I/O Voltage 3.8mV
Nominal Gain Bandwidth Product 5.8MHz
Min Dual Supply Voltage 2V
Max Dual Supply Voltage 22V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 1.6μA
Voltage Gain 99.55dB
Unity Gain BW-Nom 6000 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 5.8MHz
Bandwidth 5.8MHz
Input Offset Voltage (Vos) 3.8mV
Output Current per Channel 50mA
Current - Input Bias 2μA
Common Mode Rejection Ratio 85 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Slew Rate 45 V/μs
Current - Output 50mA
Nominal Supply Current 18mA
Operating Supply Current 13.8mA
Min Supply Voltage 4V
Max Supply Voltage 44V
Number of Circuits 4
Temperature Grade COMMERCIAL
Power Supplies 5/+-15V
Operating Supply Voltage 22V
Pin Count 14
Supply Voltage 15V
Number of Functions 4
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology BIPOLAR
Packing Method TUBE
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 14
Surface Mount NO
Package / Case PDIP
Alternative Model
