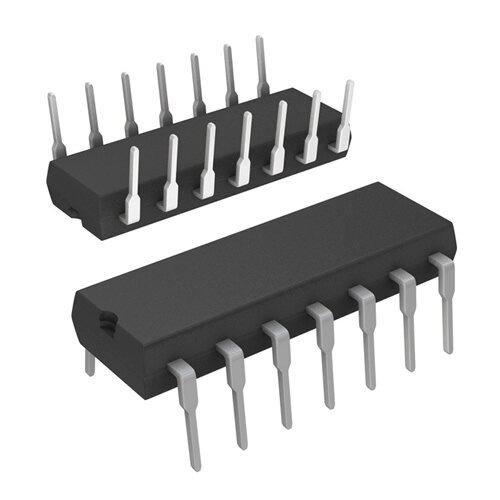

TLE2074INE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Rail/Tube op amp amplifier circuit 19.305mm 0.01muA 5mV 9400kHz
PDF
/
Inventory: 8393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 19.305mm
Height Seated (Max) 5.08mm
Technical
Input Offset Current-Max (IIO) 0.005μA
Max I/O Voltage 5mV
Nominal Gain Bandwidth Product 9.4MHz
Bias Current-Max (IIB) @25C 0.000175μA
Min Dual Supply Voltage 2.25V
Low-Bias YES
Max Dual Supply Voltage 19V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.01μA
Voltage Gain 106dB
Unity Gain BW-Nom 9400 kHz
Neg Supply Voltage-Nom (Vsup) -5V
Gain Bandwidth Product 9.4MHz
Bandwidth 9.4MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 48mA
Current - Input Bias 175pA
Common Mode Rejection Ratio 70 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Slew Rate 35 V/μs
Current - Output 48mA
Nominal Supply Current 7.5mA
Operating Supply Current 6.5mA
Temperature Grade INDUSTRIAL
Power Supplies +-5/+-15V
Number of Elements 4
Operating Supply Voltage 19V
Pin Count 14
Supply Voltage 5V
Number of Functions 4
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology BIFET
Subcategory Operational Amplifier
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Number of Pins 14
Surface Mount NO
Package / Case PDIP
