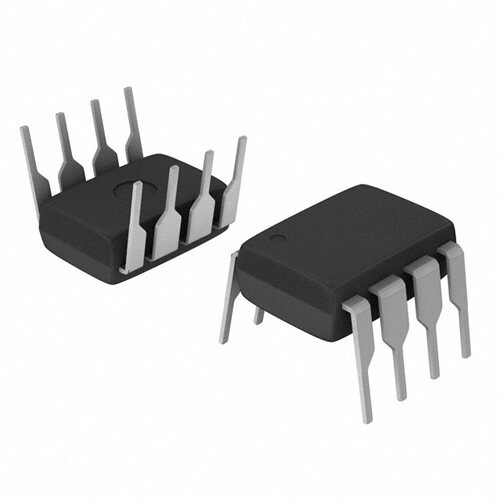

TLE2021IPE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Rail/Tube op amp amplifier circuit 9.59mm 0.09muA 600muV 2000kHz
PDF
/
Inventory: 2747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case PDIP
Surface Mount NO
Number of Pins 8
Technical
Packaging Rail/Tube
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position DUAL
Terminal Form THROUGH-HOLE
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 2.54mm
Pin Count 8
Operating Supply Voltage 20V
Number of Elements 1
Temperature Grade INDUSTRIAL
Max Supply Voltage 40V
Min Supply Voltage 4V
Operating Supply Current 240μA
Nominal Supply Current 300μA
Power Dissipation 1W
Slew Rate 0.5 V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 85 dB
Current - Input Bias 70nA
Output Current per Channel 20mA
Input Offset Voltage (Vos) 600μV
Bandwidth 1.2MHz
Gain Bandwidth Product 1.2MHz
Neg Supply Voltage-Nom (Vsup) -15V
Unity Gain BW-Nom 2000 kHz
Voltage Gain 123.52dB
Average Bias Current-Max (IIB) 0.09μA
Low-Offset YES
Frequency Compensation YES
Max Dual Supply Voltage 20V
Micropower YES
Min Dual Supply Voltage 2V
Bias Current-Max (IIB) @25C 0.07μA
Nominal Gain Bandwidth Product 1.2MHz
Max I/O Voltage 600μV
Dimensions
Length 9.59mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
